WardFlex 1XD.BCT WAR1112BLATEE
  1. pin-int

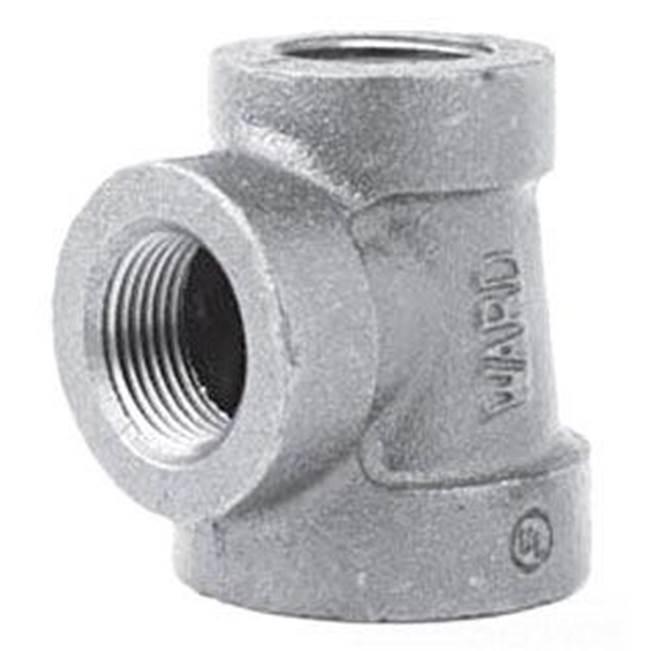

WardFlex 1XD.BCT Reducing Tee, 1 in FNPT x 1 in FNPT x 1/2 in FNPT, Iron, 125 lb

  • Manufacturer: ASC Engineered Solutions
  • Brand Name: WardFlex
  • Part#: WAR1112BLATEE
  • MPN: 1XD.BCT
  • UPC: 662467107700
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

WardFlex Reducing Tee, Tee Fitting, 1 in Connection Size 1, Connection Type 1: FNPT, 1 in Connection Size 2, Connection Type 2: FNPT, Connection Size 3: 1/2 in, Connection Type 3: FNPT, FNPT|FNPT|FNPT Connection, Iron, Material Construction: Cast Iron, Pressure Class: 125 lb, 175 psi, -20 to 150 deg F

Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Size 3      :      1/2 in
Connection Type 1      :      FNPT
Connection Type 2      :      FNPT
Connection Type 3      :      FNPT
Connection Type      :      FNPT|FNPT|FNPT
Fitting Type      :      Tee
Material Construction      :      Cast Iron
Material      :      Iron
Pressure Class      :      125 lb
Pressure Rating      :      175 psi
Temperature Rating      :      -20 to 150 deg F
  • Reducing-type, cast iron material, black finish, 1 x 1 x 1/2 in nominal size, ANSI/ASME B16.4, ANSI/ASME B1.20.1, UL, ULC, FM, NSF 61/61G applicable standard, piping, chemical application, std thickness, 400 deg F temperature rating
