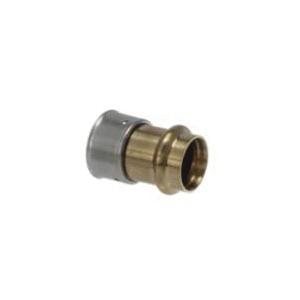

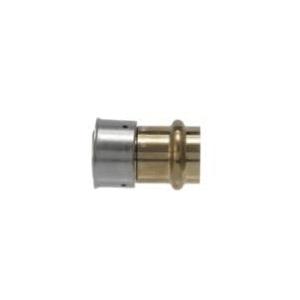

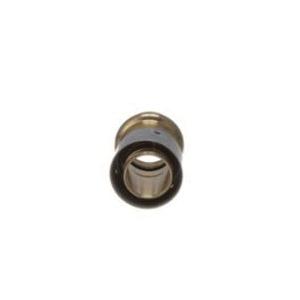

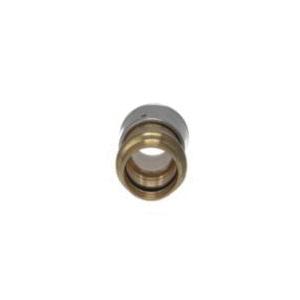

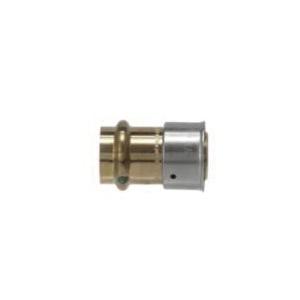

Viega PureFlow® 2813PZL Series PureFlow® Transition Coupling, 3/4 in Press x 3/4 in Press, Bronze
- Manufacturer: Viega
- Brand Name: Viega
- Part#: VIE99640
- MPN: PureFlow®
- UPC: 691514996400
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Viega PureFlow® press fittings are available in lead-free bronze and polymer and include a factory assembled, stainless steel sleeve with three viewing holes and a tool locator ring to ensure a proper PEX press connection Viega PureFlow® press is the most complete potable water and hydronic system solution available in North American.
Viega PureFlow® Transition Coupling, 2813PZL Series, Coupling Fitting, 3/4 in Connection Size 1, Connection Type 1: Press, 3/4 in Connection Size 2, Connection Type 2: Press, Press|Press Connection, Bronze, Material Construction: Lead-Free Bronze, For Use With: Viega PureFlow® PEX, Viega FostaPEX or Viega Barrier PEX Tubes, 1.73 in L, 160 psi, 180 to 200 deg F
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 3/4 in |
| Connection Type 1 | : | Press |
| Connection Type 2 | : | Press |
| Connection Type | : | Press|Press |
| Dimensions | : | 1.73 in L |
| Fitting Type | : | Coupling |
| For Use With | : | Viega PureFlow® PEX, Viega FostaPEX or Viega Barrier PEX Tubes |
| Material Construction | : | Lead-Free Bronze |
| Material | : | Bronze |
| Pressure Rating | : | 160 psi |
| Series | : | 2813PZL Series |
| Temperature Rating | : | 180 to 200 deg F |
- Smart Connect® technology
- Allows identification of an unpressed fitting during pressure testing
- Polymer fittings use high-grade polymer (Radel® R)
Instruction/Installation Manual
