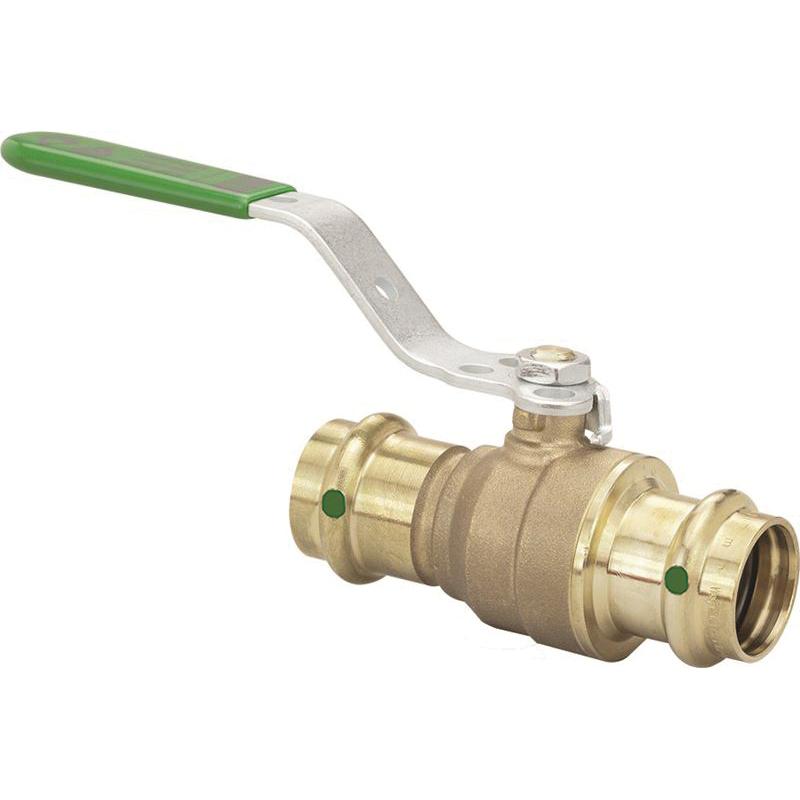

Viega ProPress® 79948 Ball Valve, 2 in, Press, Bronze, 250 psi
- Manufacturer: Viega
- Brand Name: Viega
- Part#: VIEPP79948
- MPN: 79948
- UPC: 691514799483
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
The two piece zero lead bronze ball valve is equipped with a full port, zero lead bronze body. The ball valve features EPDM sealing elements, EPDM stem seals and Viega's smart Connect® technology for easy identification of unpressed connections during pressure testing.
Viega ProPress® Ball Valve, 2 in Nominal, Press Connection, Full Port, 250 psi, Water Media, 3.3 in Top to Inlet Center, Locking Handle Operator, Bronze Body, PTFE Seat, 316 Stainless Steel Stem, EPDM Seal, Metal Handle, 316 Stainless Steel Ball, Lead-Free, 9.429 in L x 2 in W x 4.953 in H
| Ball Material | : | 316 Stainless Steel |
| Body Material | : | Bronze |
| Connection Type | : | Press |
| Dimensions | : | 9.429 in L x 2 in W x 4.953 in H |
| Handle Material | : | Metal |
| Lead-Free/Contains Lead | : | Lead-Free |
| Media | : | Water |
| Nominal Size | : | 2 in |
| Operator Type | : | Locking Handle |
| Port Type | : | Full |
| Pressure Rating | : | 250 psi |
| Seal Material | : | EPDM |
| Seat Material | : | PTFE |
| Stem Material | : | 316 Stainless Steel |
| Top to Inlet Center | : | 3.3 in |
- 316 stainless steel blowout-proof stem
- Reinforced PTFE seats
