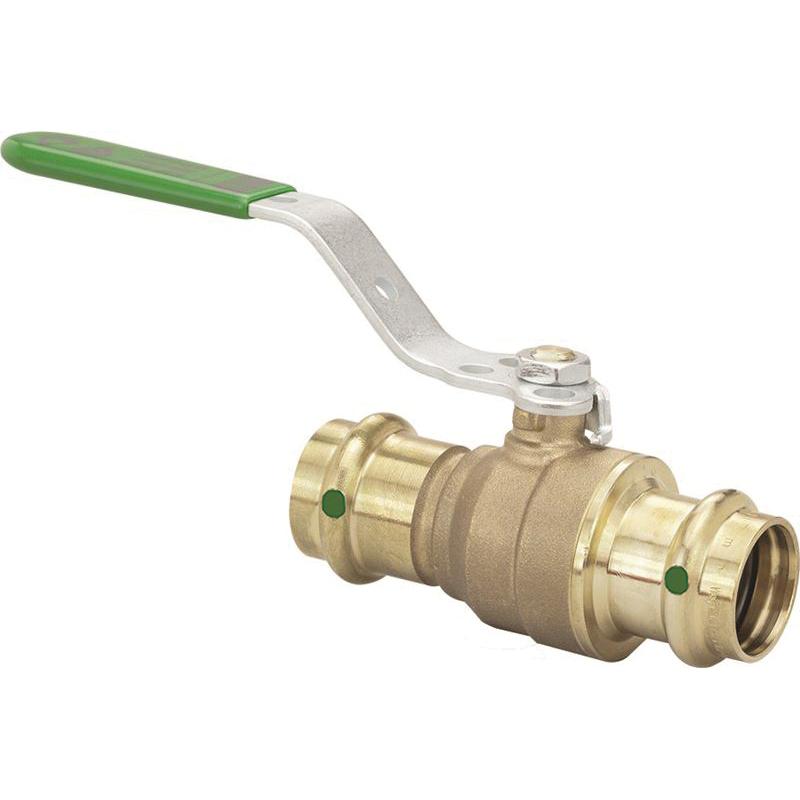

Viega ProPress® 79943 Ball Valve, 1-1/2 in, Press, Bronze, 250 psi
- Manufacturer: Viega
- Brand Name: Viega
- Part#: VIEPP79943
- MPN: 79943
- UPC: 691514799438
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
The two piece zero lead bronze ball valve is equipped with a full port, zero lead bronze body. The ball valve features EPDM sealing elements, EPDM stem seals and Viega's smart Connect® technology for easy identification of unpressed connections during pressure testing.
Viega ProPress® Ball Valve, 1-1/2 in Nominal, Press Connection, Full Port, 250 psi, Water Media, 3 in Top to Inlet Center, Locking Handle Operator, Bronze Body, PTFE Seat, 316 Stainless Steel Stem, EPDM Seal, Metal Handle, 316 Stainless Steel Ball, Lead-Free, 8.839 in L x 1.5 in W x 4.35 in H
| Ball Material | : | 316 Stainless Steel |
| Body Material | : | Bronze |
| Connection Type | : | Press |
| Dimensions | : | 8.839 in L x 1.5 in W x 4.35 in H |
| Handle Material | : | Metal |
| Lead-Free/Contains Lead | : | Lead-Free |
| Media | : | Water |
| Nominal Size | : | 1-1/2 in |
| Operator Type | : | Locking Handle |
| Port Type | : | Full |
| Pressure Rating | : | 250 psi |
| Seal Material | : | EPDM |
| Seat Material | : | PTFE |
| Stem Material | : | 316 Stainless Steel |
| Top to Inlet Center | : | 3 in |
- 316 stainless steel blowout-proof stem
- Reinforced PTFE seats
