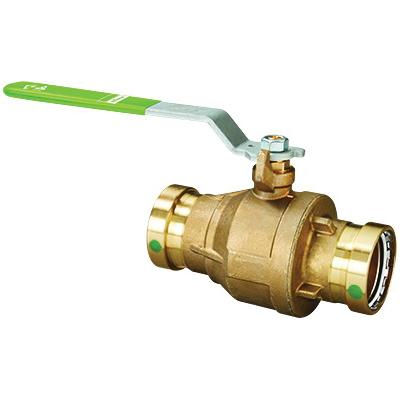

Viega ProPress® 2971.1XL Series 78310 Ball Valve With Smart Connect® Technology, 4 in, Press, Brass, 250 psi

  • Manufacturer: Viega
  • Brand Name: Viega
  • Part#: VIEPP78310
  • MPN: 78310
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

The two-piece zero lead brass ball valve is equipped with a full port, plated ball. The ball valve features EPDM sealing elements, EPDM stem seals and Viega Smart Connect® technology for easy identification of unpressed connections during testing.

Viega ProPress® Ball Valve With Smart Connect® Technology, 2971.1XL Series, 4 in Nominal, Press Connection, Full Port, 250 psi, Water Media, 9.72 in Inlet to Outlet Length, 5.12 in Top to Inlet Center, Locking Operator, Material Standard: ASTM UNS C27453, Brass Body, PTFE Seat, Brass Stem, EPDM Seal, Steel Handle, Brass Ball, Lead-Free, 0 to 250 deg F

Ball Material      :      Brass
Body Material      :      Brass
Connection Type      :      Press
Handle Material      :      Steel
Inlet to Outlet Length      :      9.72 in
Lead-Free/Contains Lead      :      Lead-Free
Material Standard      :      ASTM UNS C27453
Media      :      Water
Nominal Size      :      4 in
Operator Type      :      Locking
Port Type      :      Full
Pressure Rating      :      250 psi
Seal Material      :      EPDM
Seat Material      :      PTFE
Series      :      2971.1XL Series
Stem Material      :      Brass
Temperature Rating      :      0 to 250 deg F
Top to Inlet Center      :      5.12 in
  • Lockable metal handle
  • Chromium-plated ball
