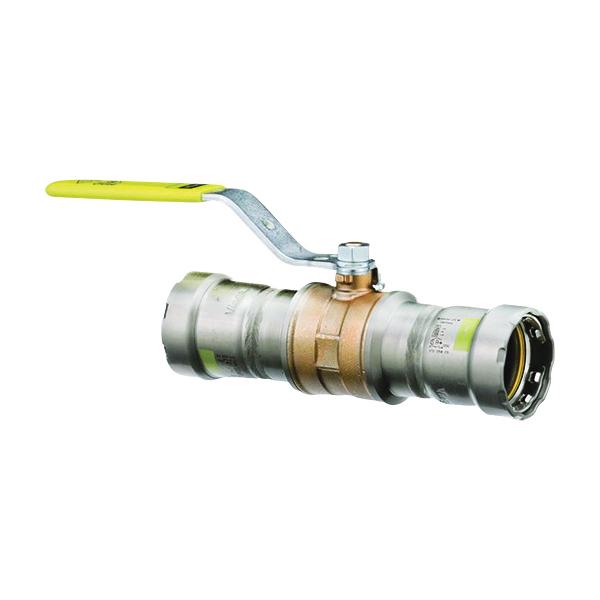

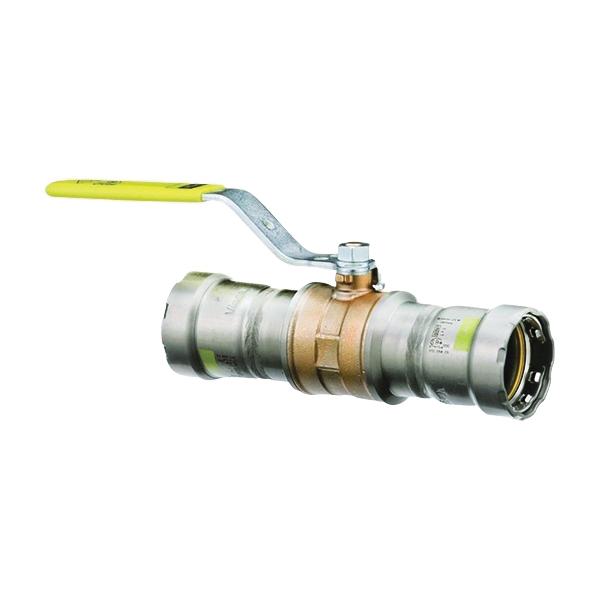

Viega MegaPressG 30625 Ball Valve, 2 in, Press, Bronze, 125 psi
- Manufacturer: Viega
- Brand Name: Viega
- Part#: VIEMPG30625
- MPN: 30625
- UPC: 691514306254
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
The MegaPress® ball valve comes equipped with a full-port silicon bronze body, a 316 stainless steel ball and zinc nickel-coated steel press ends. The ball valve is P x P and features an HNBR sealing element, a 420 SST grip ring, a 304 separator ring and Viega Smart Connect® technology for easy identification of unpressed connections during pressure testing.
Viega MegaPressG Ball Valve, 2 in Nominal, Press Connection, 125 psi, 8.7 in Inlet to Outlet Length, 3.31 in Top to Inlet Center, Locking Handle Operator, Material Standard: ASME B31, Bronze Body, PTFE Seat, Brass Stem, HNBR Seal, Brass/HNBR/PTFE Trim, Steel Handle, 316 Stainless Steel Ball, HNBR/Polyvinyl/PTFE Softgoods, -40 to 180 deg F, 8.7 in L, Domestic/Import: Domestic, Additional Information: Model 6675
| Additional Information | : | Model 6675 |
| Ball Material | : | 316 Stainless Steel |
| Body Material | : | Bronze |
| Connection Type | : | Press |
| Dimensions | : | 8.7 in L |
| Domestic/Import | : | Domestic |
| Handle Material | : | Steel |
| Inlet to Outlet Length | : | 8.7 in |
| Material Standard | : | ASME B31 |
| Nominal Size | : | 2 in |
| Operator Type | : | Locking Handle |
| Pressure Rating | : | 125 psi |
| Seal Material | : | HNBR |
| Seat Material | : | PTFE |
| Softgoods Material | : | HNBR/Polyvinyl/PTFE |
| Stem Material | : | Brass |
| Temperature Rating | : | -40 to 180 deg F |
| Top to Inlet Center | : | 3.31 in |
| Trim Material | : | Brass/HNBR/PTFE |
- Smart Connect® technology
- HNBR sealing elements, lockable metal handle
- For use with SCH 5 to 40 carbon steel pipe
- Double stem seal
Specification Sheet
