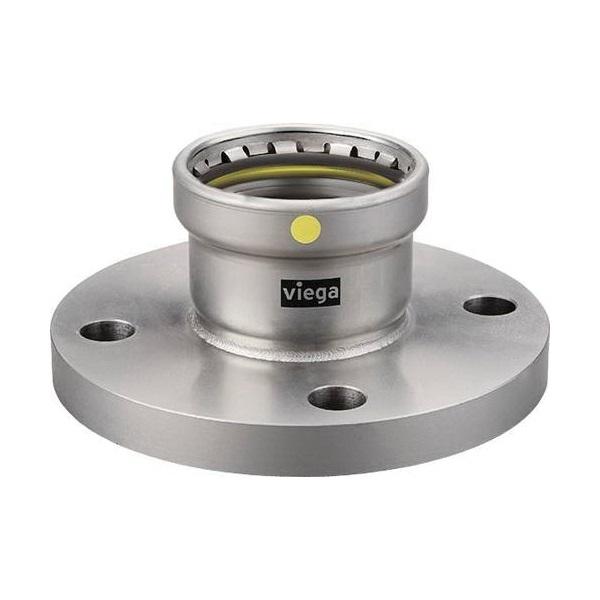

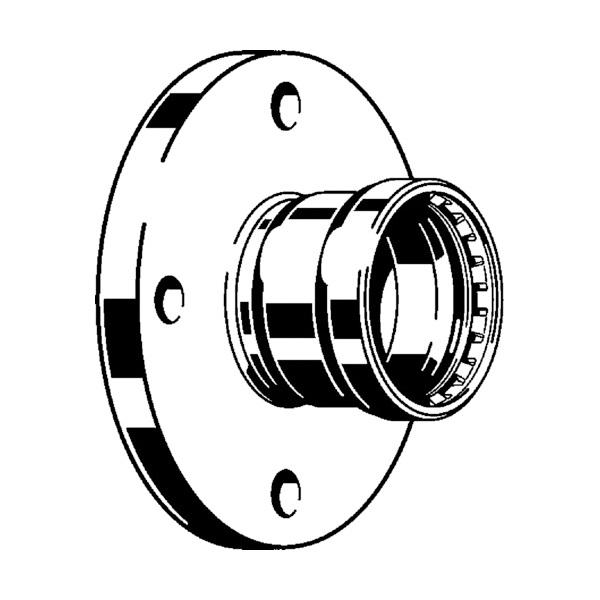

Viega 6659.5XL Series 28880 Adapter Flange, 3 in Press x 4 in Press, Steel, Zinc Nickel-Coated
- Manufacturer: Viega
- Brand Name: Viega
- Part#: VIEMPG28880
- MPN: 28880
- UPC: 691514288802
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Viega MegaPressG with an HNBR sealing element is the first Press® fitting system for carbon steel pipe approved for use in gas and fuel oil applications. Viega MegaPressG is ideal for industrial, commercial and residential applications and performs well in both new installations and retrofit projects. Tested to the strictest standards in North America, Viega MegaPressG joins carbon steel pipe reliably through the engineered design of the fittings and a battery powered Press® tool. Not approved for use with potable water.
Viega Adapter Flange, 6659.5XL Series, Flange Fitting, 3 in Connection Size 1, Connection Type 1: Press, 4 in Connection Size 2, Connection Type 2: Press, Press|Press Connection, Steel, Material Construction: Steel, Finish: Zinc Nickel-Coated, For Use With: SCH 10 to SCH 40 Carbon Steel Pipes, 3.95 in L, 125 to 200 psi, -40 to 180 deg F, Additional Information: 7.48 in Dia, 3/4 in Bolt, 5.98 in Dia Bolt Circle
| Additional Information | : | 7.48 in Dia, 3/4 in Bolt, 5.98 in Dia Bolt Circle |
| Connection Size 1 | : | 3 in |
| Connection Size 2 | : | 4 in |
| Connection Size | : | 3 x 4 in |
| Connection Type 1 | : | Press |
| Connection Type 2 | : | Press |
| Connection Type | : | Press|Press |
| Dimensions | : | 3.95 in L |
| Finish | : | Zinc Nickel-Coated |
| Fitting Type | : | Flange |
| For Use With | : | SCH 10 to SCH 40 Carbon Steel Pipes |
| Material Construction | : | Steel |
| Material | : | Steel |
| Pressure Rating | : | 125 to 200 psi |
| Series | : | 6659.5XL Series |
| Temperature Rating | : | -40 to 180 deg F |
- Corrosion-resistant zinc nickel coating
- The same hanger and support requirements as threaded systems
- Smart Connect® technology provides installers added confidence in their ability to ensure secure connections
Instruction/Installation Manual
