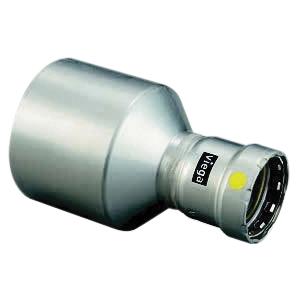

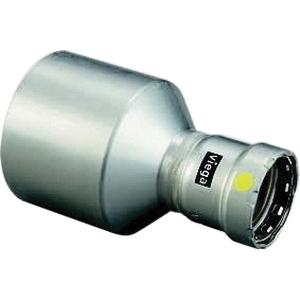

Viega 6615.1XL Series 28840 Reducer, 4 in IPS x 1-1/2 in Press, Steel, Zinc Nickel-Coated
- Manufacturer: Viega
- Brand Name: Viega
- Part#: VIEMPG28840
- MPN: 28840
- UPC: 691514288406
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Viega MegaPress®G is a carbon steel, cold press system designed for use in compressed air, fuel gas and heating oil applications. Viega MegaPress®G fittings are designed for use in piping systems utilizing ASTM A53, A106, A135 and A795 schedule 5 to schedule 40 carbon steel pipe. Viega MegaPress®G fittings for fuel gas or fuel oil systems shall be used with ASTM A53 schedule 40 carbon steel pipe.
Viega Reducer, 6615.1XL Series, Reducer Fitting, 4 in Connection Size 1, Connection Type 1: IPS, 1-1/2 in Connection Size 2, Connection Type 2: Press, IPS|Press Connection, Steel, Material Construction: Steel, Finish: Zinc Nickel-Coated, 7.47 in L, 125 to 200 psi, -40 to 180 deg F
| Connection Size 1 | : | 4 in |
| Connection Size 2 | : | 1-1/2 in |
| Connection Type 1 | : | IPS |
| Connection Type 2 | : | Press |
| Connection Type | : | IPS|Press |
| Dimensions | : | 7.47 in L |
| Finish | : | Zinc Nickel-Coated |
| Fitting Type | : | Reducer |
| Material Construction | : | Steel |
| Material | : | Steel |
| Pressure Rating | : | 125 to 200 psi |
| Series | : | 6615.1XL Series |
| Temperature Rating | : | -40 to 180 deg F |
- Approved for more applications than any other carbon steel pipe press fitting system
- Corrosion-resistant zinc nickel coating
- No adjustments required - seals the first time, every time
- Approved for underground applications in accordance with code and local AHJ
- The same hanger and support requirements as threaded systems
- Viega Smart Connect® technology helps easily identify unpressed connections and provides installers added confidence in the integrity of connections
Instruction/Installation Manual
