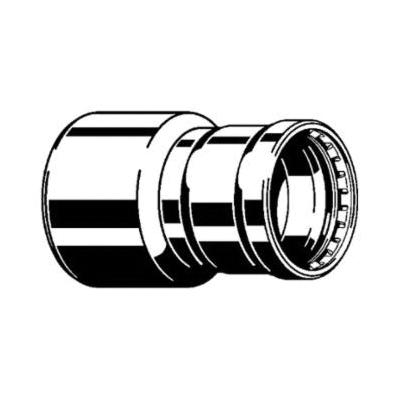

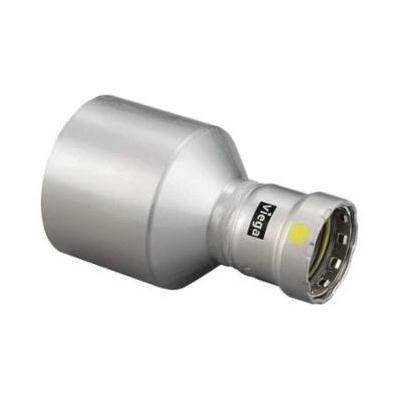

Viega MegaPressG® 6615.1XL Series 28830 Tube Reducer, 3 in IPS x 2 in Press, Steel, Zinc Nickel-Coated
- Manufacturer: Viega
- Brand Name: Viega
- Part#: VIEMPG28830
- MPN: 28830
- UPC: 691514288307
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Viega MegaPressG® with an HNBR sealing element is the first press fitting system for carbon steel pipe approved for use in gas and fuel oil applications. Viega MegaPressG® is ideal for industrial, commercial and residential applications and performs well in both new installations and retrofit projects. Tested to the strictest standards in North America, Viega MegaPressG® joins carbon steel pipe reliably through the engineered design of the fittings and a battery powered press tool. Not approved for use with potable water.
Viega Tube Reducer, 6615.1XL Series, Reducer Fitting, Connection Size 1: 3 in, Connection Type 1: IPS, Connection Size 2: 2 in, Connection Type 2: Press, IPS|Press Connection, Steel, Material Construction: Carbon Steel, Finish: Zinc Nickel-Coated, For Use With: SCH 5 to 40 Carbon Steel Pipes, 5-3/4 in L, 125 to 200 psi, -40 to 180 deg F
| Connection Size 1 | : | 3 in |
| Connection Size 2 | : | 2 in |
| Connection Type 1 | : | IPS |
| Connection Type 2 | : | Press |
| Connection Type | : | IPS|Press |
| Dimensions | : | 5-3/4 in L |
| Finish | : | Zinc Nickel-Coated |
| Fitting Type | : | Reducer |
| For Use With | : | SCH 5 to 40 Carbon Steel Pipes |
| Material Construction | : | Carbon Steel |
| Material | : | Steel |
| Pressure Rating | : | 125 to 200 psi |
| Series | : | 6615.1XL Series |
| Temperature Rating | : | -40 to 180 deg F |
- Smart Connect® technology provides installers added confidence in their ability to ensure secure connections
- Allows identification of an unpressed fitting during pressure testing
- Corrosion-resistant zinc nickel coating
- The same hanger and support requirements as threaded systems
- Must be installed with MegaPress® XL rings and PressBooster/Z3 actuator
