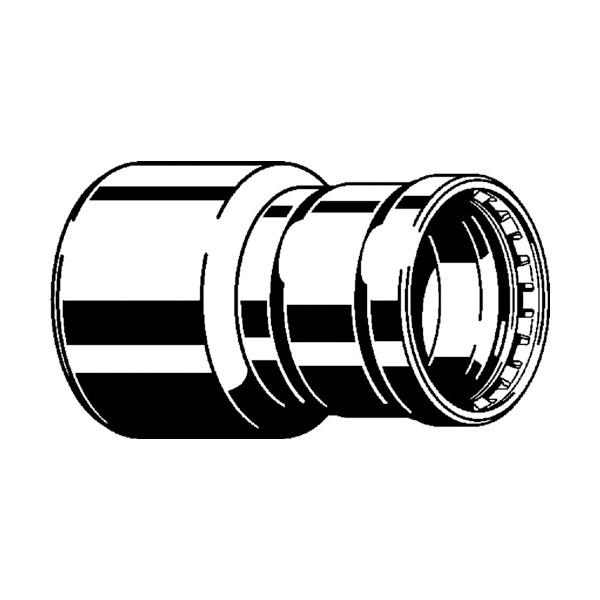

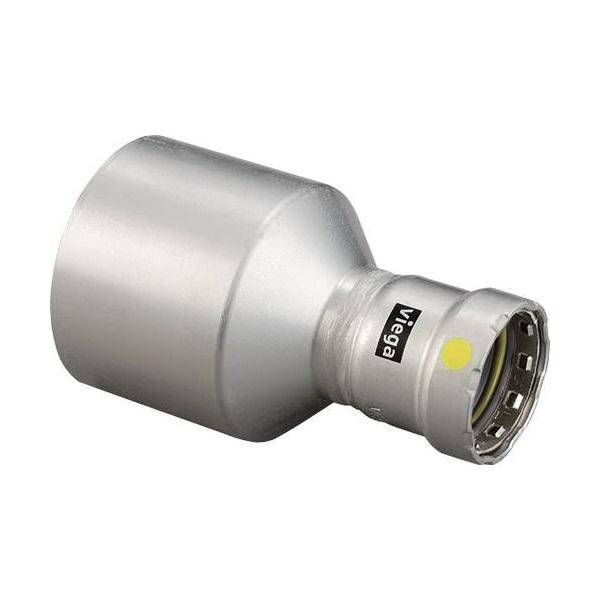

Viega 6615.1XL Series 28815 Reducer, 2-1/2 in IPS x 2 in Press, Steel, Zinc Nickel-Coated
- Manufacturer: Viega
- Brand Name: Viega
- Part#: VIEMPG28815
- MPN: 28815
- UPC: 691514288154
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Viega MegaPressG with an HNBR sealing element is the first Press® fitting system for carbon steel pipe approved for use in gas and fuel oil applications. Viega MegaPressG is ideal for industrial, commercial and residential applications and performs well in both new installations and retrofit projects. Tested to the strictest standards in North America, Viega MegaPressG joins carbon steel pipe reliably through the engineered design of the fittings and a battery powered Press® tool. Not approved for use with potable water.
Viega Reducer, 6615.1XL Series, Reducer Fitting, 2-1/2 in Connection Size 1, Connection Type 1: IPS, 2 in Connection Size 2, Connection Type 2: Press, IPS|Press Connection, Steel, Material Construction: Steel, Finish: Zinc Nickel-Coated, 4.96 in L, 125 to 200 psi, -40 to 180 deg F
| Connection Size 1 | : | 2-1/2 in |
| Connection Size 2 | : | 2 in |
| Connection Type 1 | : | IPS |
| Connection Type 2 | : | Press |
| Connection Type | : | IPS|Press |
| Dimensions | : | 4.96 in L |
| Finish | : | Zinc Nickel-Coated |
| Fitting Type | : | Reducer |
| Material Construction | : | Steel |
| Material | : | Steel |
| Pressure Rating | : | 125 to 200 psi |
| Series | : | 6615.1XL Series |
| Temperature Rating | : | -40 to 180 deg F |
- Corrosion-resistant zinc nickel coating
- The same hanger and support requirements as threaded systems
- Smart Connect® technology provides installers added confidence in their ability to ensure secure connections
