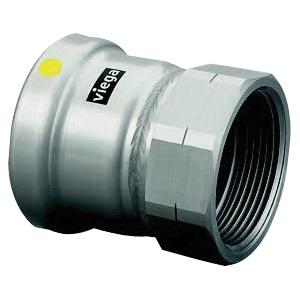

Viega 6611XL Series 28760 Pipe Adapter, 3 in Press x 3 in FNPT, Steel, Zinc Nickel-Coated
- Manufacturer: Viega
- Brand Name: Viega
- Part#: VIEMPG28760
- MPN: 28760
- UPC: 691514287607
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Viega MegaPressG with an HNBR sealing element is the first press fitting system for carbon steel pipe approved for use in gas and fuel oil applications. Viega MegaPressG is ideal for industrial, commercial and residential applications and performs well in both new installations and retrofit projects. Tested to the strictest standards in North America, Viega MegaPressG joins carbon steel pipe reliably through the engineered design of the fittings and a battery powered press tool. Not approved for use with potable water.
Viega Pipe Adapter, 6611XL Series, Adapter Fitting, 3 in Connection Size 1, Connection Type 1: Press, 3 in Connection Size 2, Connection Type 2: FNPT, Press|FNPT Connection, Steel, Material Construction: Steel, Finish: Zinc Nickel-Coated, 4.49 in L, 125 to 200 psi, -40 to 180 deg F
| Connection Size 1 | : | 3 in |
| Connection Size 2 | : | 3 in |
| Connection Type 1 | : | Press |
| Connection Type 2 | : | FNPT |
| Connection Type | : | Press|FNPT |
| Dimensions | : | 4.49 in L |
| Finish | : | Zinc Nickel-Coated |
| Fitting Type | : | Adapter |
| Material Construction | : | Steel |
| Material | : | Steel |
| Pressure Rating | : | 125 to 200 psi |
| Series | : | 6611XL Series |
| Temperature Rating | : | -40 to 180 deg F |
- Corrosion-resistant zinc nickel coating
- The same hanger and support requirements as threaded systems
- Smart Connect® technology provides installers added confidence in their ability to ensure secure connections
Instruction/Installation Manual
