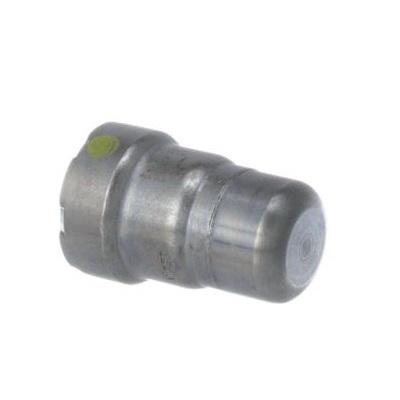

Viega MegaPressG® 6656 Series 25756 Cap, 2 in Press, Steel, Zinc Nickel-Coated
- Manufacturer: Viega
- Brand Name: Viega
- Part#: VIEMPG25756
- MPN: 25756
- UPC: 691514257563
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Viega MegaPress® with an HNBR sealing element is the first Press® fitting system for carbon steel pipe approved for use in gas and fuel oil applications. Viega MegaPress® is ideal for industrial, commercial and residential applications and performs well in both new installations and retrofit projects. Tested to the strictest standards in North America, Viega MegaPress® joins carbon steel pipe reliably through the engineered design of the fittings and a battery powered Press® tool. Not approved for use with potable water.
Viega Cap, Series: 6656 Series, Cap Fitting, 2 in Connection Size 1, Press Connection Type 1, Press Connection, Steel, Carbon Steel Material Construction, Zinc Nickel-Coated, 3.11 in L x 2.25 in W x 2.25 in H, 125 to 200 psi, -40 to 180 deg F
| Connection Size 1 | : | 2 in |
| Connection Type 1 | : | Press |
| Connection Type | : | Press |
| Dimensions | : | 3.11 in L x 2.25 in W x 2.25 in H |
| Finish | : | Zinc Nickel-Coated |
| Fitting Type | : | Cap |
| Material Construction | : | Carbon Steel |
| Material | : | Steel |
| Pressure Rating | : | 125 to 200 psi |
| Series | : | 6656 Series |
| Temperature Rating | : | -40 to 180 deg F |
- Corrosion-resistant zinc nickel-coating
- The same hanger and support requirements as threaded systems
- Smart Connect® technology provides installers added confidence in their ability to ensure secure connections
- Approved for more applications than any other carbon steel pipe press fitting system
- More than 200 engineered fitting configurations from 1/2 to 4 in
- Engineered with a 420 stainless steel grip ring plus a 304 stainless steel separator ring for sizes 1/2 to 2 in and a graphite separator ring for sizes 2-1/2 to 4 in
