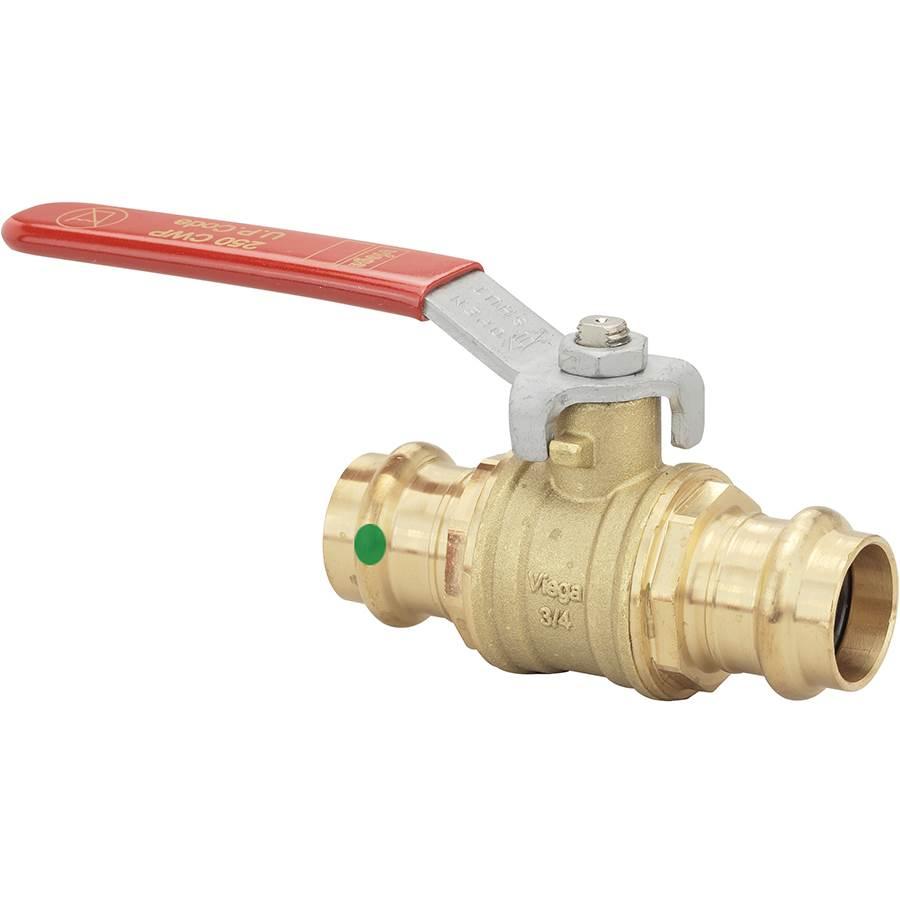

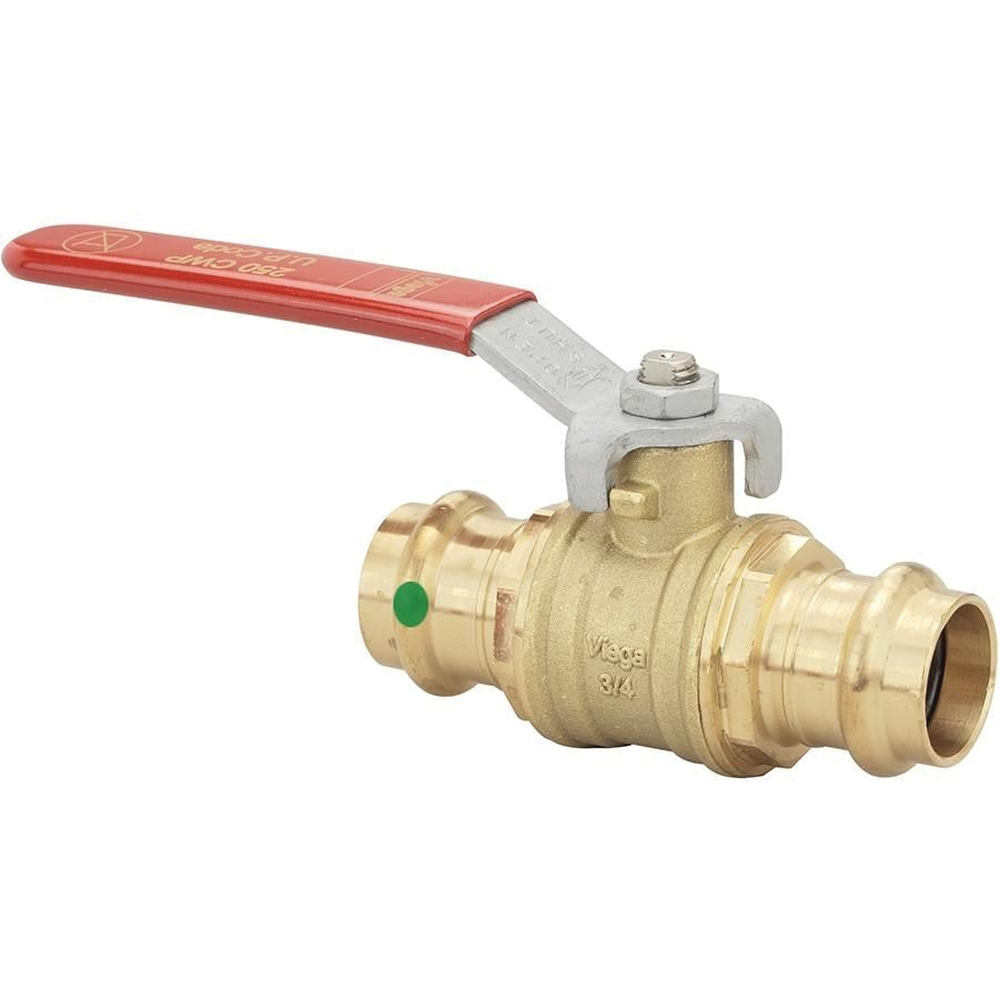

Viega ProPress® 24020 3-Piece Ball Valve, 1-1/2 in, Press, Brass/Bronze, 200 psi
- Manufacturer: Viega
- Brand Name: Viega
- Part#: VIEPP24020
- MPN: 24020
- UPC: 691514240206
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Viega ProPress® 3-Piece Ball Valve, 1-1/2 in Nominal, Press Connection, Full Port, 200 psi, 3.11 in Top to Inlet Center, 1 in Opening, Lever Handle Operator, Brass/Bronze Body, PTFE Seat, Brass Stem, EPDM Seal, Steel/Vinyl Handle, Brass Ball, 0 to 250 deg F
| Ball Material | : | Brass |
| Body Material | : | Brass/Bronze |
| Connection Type | : | Press |
| Handle Material | : | Steel/Vinyl |
| Nominal Size | : | 1-1/2 in |
| Opening Size | : | 1 in |
| Operator Type | : | Lever Handle |
| Port Type | : | Full |
| Pressure Rating | : | 200 psi |
| Seal Material | : | EPDM |
| Seat Material | : | PTFE |
| Stem Material | : | Brass |
| Temperature Rating | : | 0 to 250 deg F |
| Top to Inlet Center | : | 3.11 in |
- Patented viega Smart Connect® makes secure connection in less than 7 s
- Minimizes system downtime by allowing for wet connection
- Fast and easy-to-use
- No flame, solder, flux or heavy equipment needed
- Helps installers easily identify unpressed connections during pressure testing
- Corrosion-resistant
