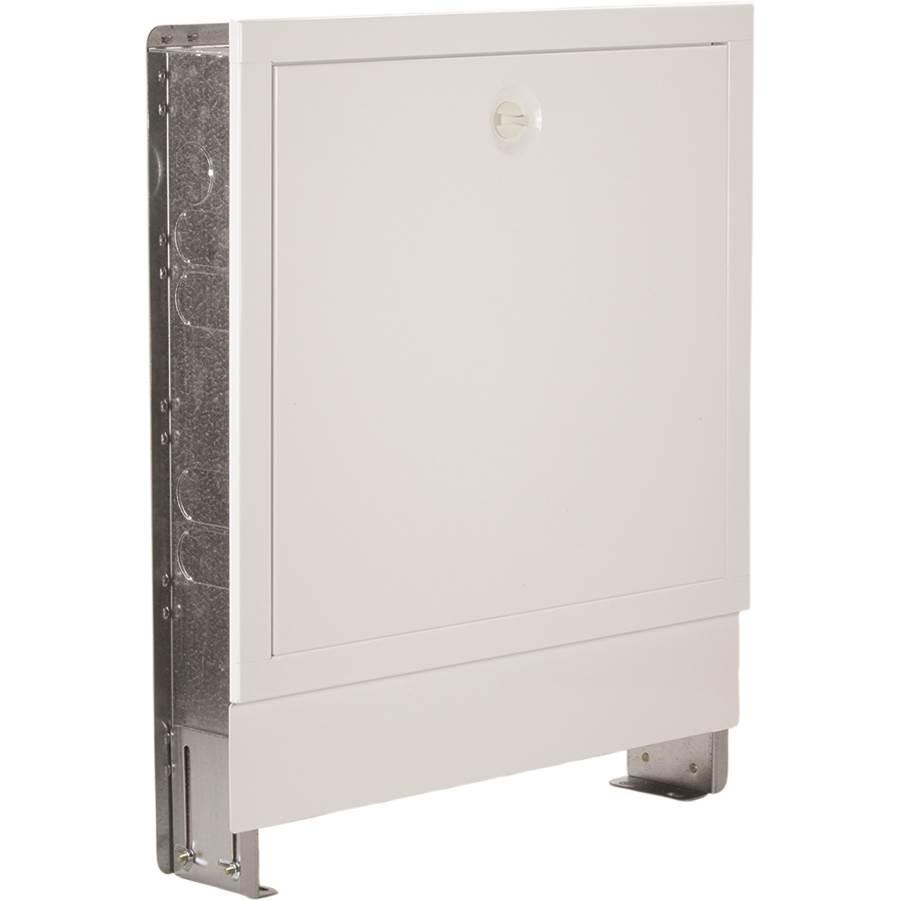

Viega 15800 Manifold Cabinet, Steel, Epoxy Powder-Coated/Galvanized, 28 in H x 21 in W x 4-1/2 in D
- Manufacturer: Viega
- Brand Name: Viega
- Part#: VIE15800
- MPN: 15800
- UPC: 691514158006
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Viega manifold cabinet is designed to house our 1-1/4 in stainless steel manifolds and 1 in copper manifolds. The Viega manifold cabinet may also be used with zone controls and powerheads in some applications.
Viega Manifold Cabinet, For Use With: 2879 Manifold with Shutoff and Balancing, 2804 Manifold with Shutoff, Balancing and Flow Meters and 2878 Valveless Manifolds, Steel, Epoxy Powder-Coated/Galvanized, 28 in H x 21 in W x 4-1/2 in D, Domestic/Import: Import
| Dimensions | : | 28 in H x 21 in W x 4-1/2 in D |
| Domestic/Import | : | Import |
| Finish | : | Epoxy Powder-Coated/Galvanized |
| Material | : | Steel |
| Suitable For Use With | : | 2879 Manifold with Shutoff and Balancing, 2804 Manifold with Shutoff, Balancing and Flow Meters and 2878 Valveless Manifolds |
- Recess-mount
- Adjustable wall depth (4-1/2 to 6 in)
- 20 ga galvanized sheet metal construction (1 mm)
- Open bottom makes tubing connections easy
- Adjustable legs (0 to 7 in)
