US Motors® 1863 USM1863
  1. pin-int

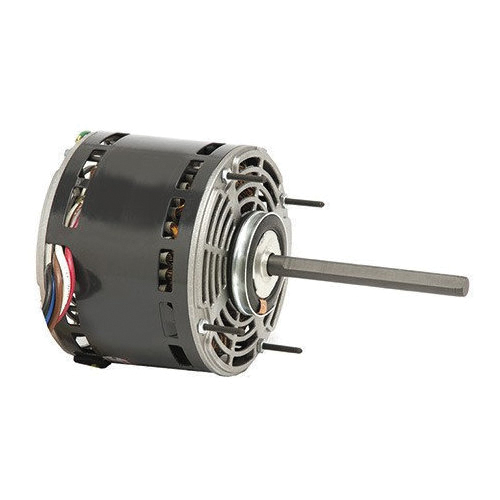

US Motors® 1863 Motor, 1/4 hp, 115 V, 60 Hz, 1 ph, 48 Frame, 1075 rpm Speed

  • Manufacturer: Nidec Corporation
  • Brand Name: US Motors®
  • Part#: USM1863
  • MPN: 1863
  • UPC: 014129018631
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

US Motors® Motor, 1/4 hp, 115 V, 3.5 A, 60 Hz, 1 ph, 1075 rpm, 3 Speed, OAO Enclosure, 48 Frame, 1/2 x 5 in Shaft, 1 Service Factor, Ball Bearing, 26.59 ft-oz Breakdown, 6.034 ft-oz Locked Rotor Torque, Band/Hub/Stud Mounting, Insulation Class: Class B, 5.6 in Overall Width, 10.4 in Overall Depth, For Use With: 370 V Permanent Split Capacitors, Direct Drive Fan and Blowers, Additional Information: Model K055WPR1390012B, FHP Motor Type, CCW Lead End Reversible Rotation, 6-Pole

Additional Information      :      Model K055WPR1390012B, FHP Motor Type, CCW Lead End Reversible Rotation, 6-Pole
Amperage Rating      :      3.5 A
Bearing Type      :      Ball
Dimensions      :      5.6 in Dia x 10.4 in L
Drive Type      :      Direct
Duty Type      :      Continuous
Enclosure Type      :      OAO
Frame Size      :      48Y
Frame      :      48
Frequency Rating      :      60 Hz
HP Rating      :      1/4 hp
Insulation Class      :      Class B
Material      :      Rolled Steel
Motor Enclosure Type      :      Open Air Over
Mounting Type      :      Band/Hub/Stud
Number of Poles      :      6
Number of Speeds      :      3
Overall Depth      :      10.4 in
Overall Width      :      5.6 in
Phase      :      1 ph
Rotation Type      :      Reversible
Service Factor      :      1
Shaft Size      :      1/2 x 5 in
Speed Rating      :      1075 rpm
Suitable For Use With      :      370 V Permanent Split Capacitors, Direct Drive Fan and Blowers
Temperature Rating      :      40 deg C
Torque Rating      :      26.59 ft-oz Breakdown, 6.034 ft-oz Locked Rotor
Voltage Rating      :      115 V
  • Stud Extensions On Popular Models
  • Designed for use with 370V Capacitors
  • Class B Insulation
  • 24" Leads
  • Continuous Duty, Air Over
  • Bearings Have All Angle Thrust System
  • Reversible Rotation
  • Automatic Reset Thermal Overload Protector
  • Connection and Capacitor Information Furnished in the Nameplate Data
  • 2.5" Dia. Hub Rings Included
  • All Angle Mount
  • 208v will not be marked on DOE regulated spread-voltage motors.
