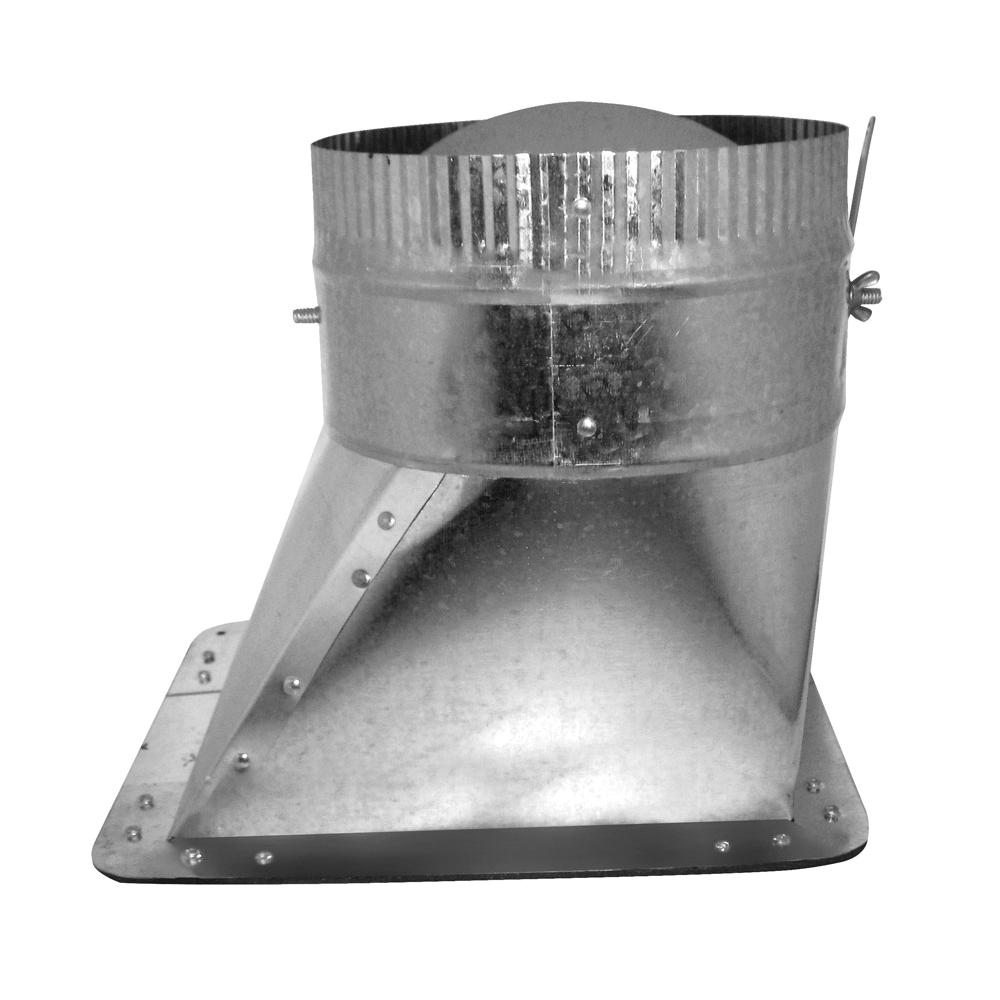

Southwark ATHEWD6 Take-Off With Damper, 6 in, Flanged, Galvanized, Steel
- Manufacturer: Southwark Metal Manufacturing
- Brand Name: Southwark
- Part#: ACM6176
- MPN: ATHEWD6
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Southwark Take-Off With Damper, 6 in Fitting, Flanged Connection, Rectangular to Round Shape, Steel, Finish: Galvanized, 10 in Length, 6 in Width, 10 in Height, 26 ga Gauge
| Connection Type | : | Flanged |
| Finish | : | Galvanized |
| Fitting Size | : | 6 in |
| Gauge | : | 26 ga |
| Height | : | 10 in |
| Length | : | 10 in |
| Material | : | Steel |
| Shape | : | Rectangular to Round |
| Width | : | 6 in |
- Rectangular opening
- Designed with an appropriate 45 deg slope on the body
- 1 in flange on all sides with neoprene gasket
- 1-7/8 in crimp
- 3/8 in continuous rod on damper
- High-efficiency take-off with heavy-duty damper feat continuous rod
- 6 in base opening size, 1 in flange size
