RLS® 3501181800111 Street Elbow, 1-1/8 in Press x 1-1/8 in Street Hub
- Manufacturer: RLS LLC
- Brand Name: RLS®
- Part#: RLS118STREL
- MPN: 3501181800111
- UPC: 810027941480
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:

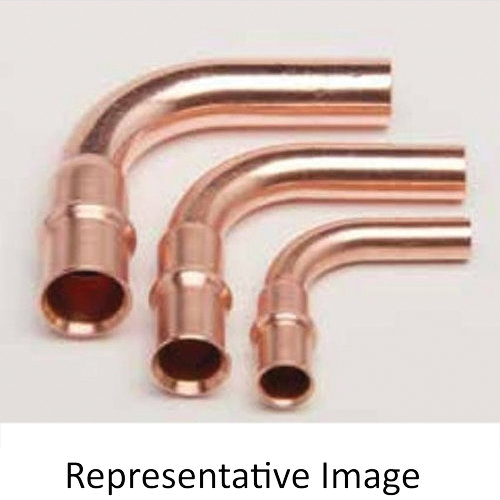

RLS street elbows let you make 90 deg directional changes while connecting directly to another fitting, such as a reducer, coupling, or tee, without needing a short piece of tube in between. That means fewer materials, fewer joints, and more flexibility in tight installs. Whether you're navigating cramped chases or optimizing layout behind units, street elbows help you save space and time while keeping everything flame-free.
RLS® Street Elbow, 3501 Series, Connection Size 1: 1-1/8 in, Connection Type 1: Press, Connection Size 2: 1-1/8 in, Connection Type 2: Street Hub, Material Construction: Copper, 1.29 in Tube OD, 1.45 in W, 700 psi, 250 deg F, Additional Information: 3.8 in Center-to-End Size 1, 3.93 in Center-to-End Size 2
| Additional Information | : | 3.8 in Center-to-End Size 1, 3.93 in Center-to-End Size 2 |
| Connection Size 1 | : | 1-1/8 in |
| Connection Size 2 | : | 1-1/8 in |
| Connection Type 1 | : | Press |
| Connection Type 2 | : | Street Hub |
| Connection Type | : | Press|Hub |
| Correct Item Group | : | Pipe & Fittings, Supplies |
| Dimensions | : | 1.45 in W |
| Fitting Type | : | 90 deg Street Elbow |
| Material Construction | : | Copper |
| Material | : | Copper |
| Pressure Rating | : | 700 psi |
| Series | : | 3501 Series |
| Temperature Rating | : | 250 deg F |
| Tube OD | : | 1.29 in |
- Built with RLS PressSure™ Technology
- Manufactured from refrigerant grade copper
- Approved for A2L refrigerants
- Rated to 700 psi and tested to perform under pressure, vibration and thermal cycling
