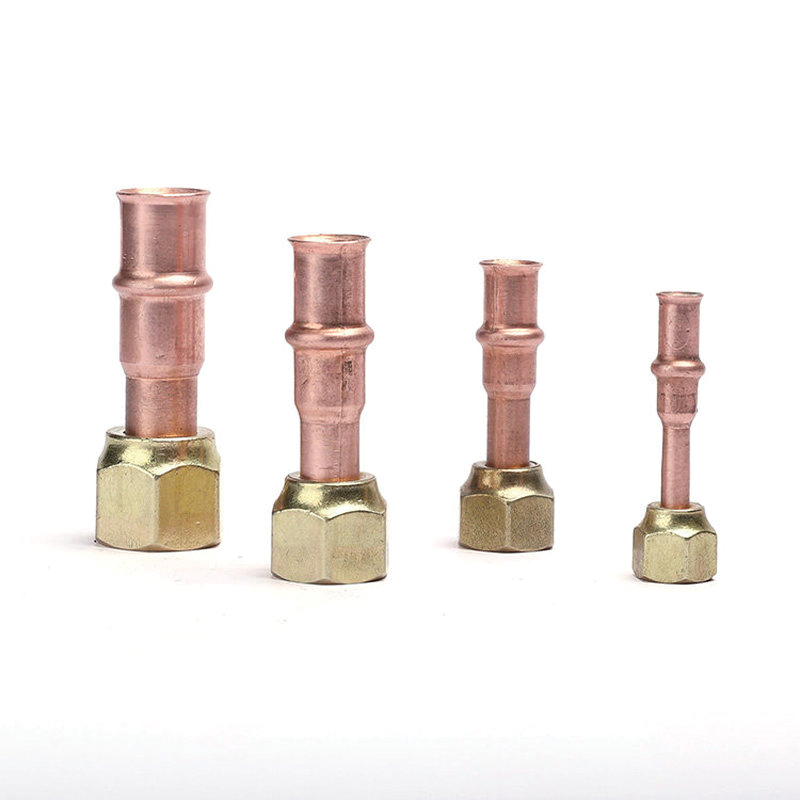

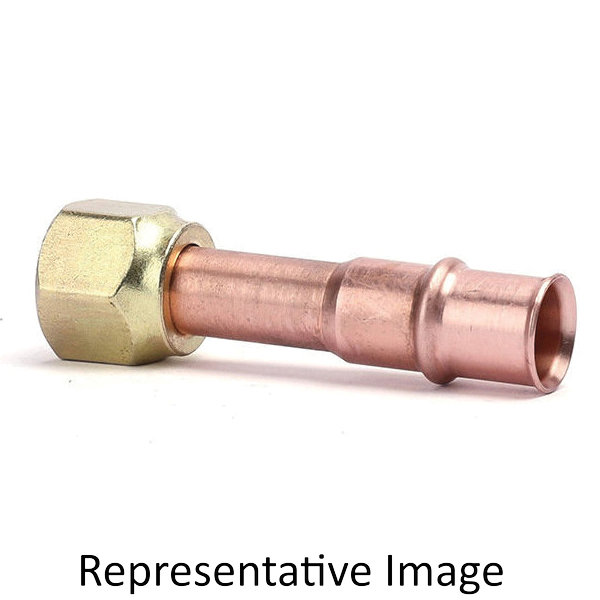

RLS® 3291080000111 Adapter, 1/2 in Press x 1/2 in Flared x 1/2 in x 1/2 in
- Manufacturer: RLS LLC
- Brand Name: RLS®
- Part#: RLS12FLA
- MPN: 3291080000111
- UPC: 687472598510
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Factory-formed and press-ready, RLS flares offer a stronger, safer alternative to field-made flares - perfect for minisplits, VRF, and inverter systems. Tired of flaring in the field RLS press flare fittings give you a better way. With a thicker copper wall, our factory-formed flares are strong and far less likely to crack or leak compared to ones made on the jobsite.
RLS® Adapter, 3291 Series, Connection Size 1: 1/2 in, Connection Type 1: Press, Connection Size 2: 1/2 in, Connection Type 2: Flared, Connection Size 3: 1/2 in, Connection Size 4: 1/2 in, Material Construction: Copper, 0.72 in W, 700 psi, 250 deg F
| Connection Size 1 | : | 1/2 in |
| Connection Size 2 | : | 1/2 in |
| Connection Size 3 | : | 1/2 in |
| Connection Size 4 | : | 1/2 in |
| Connection Type 1 | : | Press |
| Connection Type 2 | : | Flared |
| Connection Type | : | Press|Flared |
| Correct Item Group | : | Pipe & Fittings, Supplies |
| Dimensions | : | 0.72 in W |
| Fitting Type | : | Adapter |
| Material Construction | : | Copper |
| Material | : | Copper |
| Pressure Rating | : | 700 psi |
| Series | : | 3291 Series |
| Temperature Rating | : | 250 deg F |
- Built with RLS PressSure™ Technology
- Manufactured from refrigerant grade copper
- Approved for A2L refrigerants
- Rated to 700 psi and tested to perform under pressure, vibration and thermal cycling
Instruction/Installation Manual
