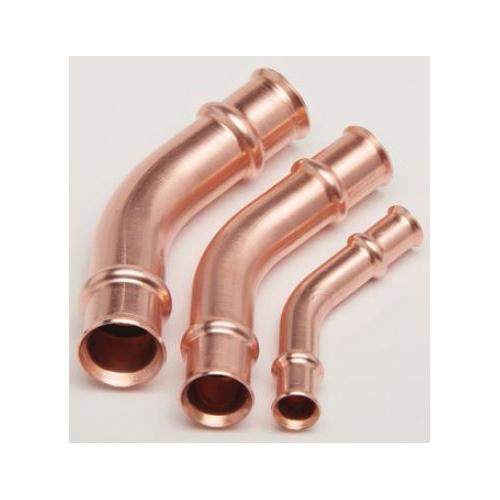

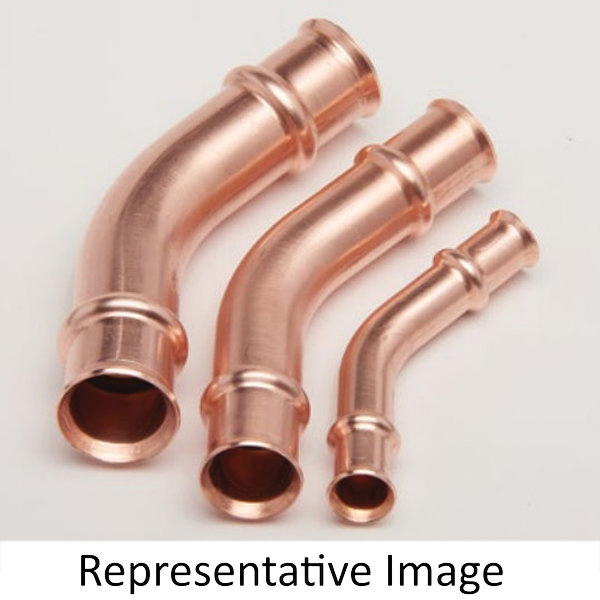

RLS® 3081181800111 Elbow, 1-1/8 in Press x 1-1/8 in Press
- Manufacturer: RLS LLC
- Brand Name: RLS®
- Part#: RLS11845ELB
- MPN: 3081181800111
- UPC: 810027940094
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Built for directional changes that demand strength, flow, and flexibility RLS long radius elbows combine precision engineering with flame-free speed to keep your systems efficient and your installs clean. When the system turns, your fittings need to follow-without sacrificing flow or performance. RLS long radius elbows are engineered for smooth directional changes that maintain system integrity and minimize pressure drop, helping refrigerant and oil move efficiently through the line.
RLS® Elbow, 3081 Series, Connection Size 1: 1-1/8 in, Connection Type 1: Press, Connection Size 2: 1-1/8 in, Connection Type 2: Press, Material Construction: Copper, 1.41 in Tube OD, 1.45 in W, 700 psi, 250 deg F, Additional Information: 2 in Bend Radius
| Additional Information | : | 2 in Bend Radius |
| Connection Size 1 | : | 1-1/8 in |
| Connection Size 2 | : | 1-1/8 in |
| Connection Type 1 | : | Press |
| Connection Type 2 | : | Press |
| Connection Type | : | Press|Press |
| Correct Item Group | : | Pipe & Fittings, Supplies |
| Dimensions | : | 1.45 in W |
| Fitting Type | : | 45 deg Elbow |
| Material Construction | : | Copper |
| Material | : | Copper |
| Pressure Rating | : | 700 psi |
| Series | : | 3081 Series |
| Temperature Rating | : | 250 deg F |
| Tube OD | : | 1.41 in |
- Built with RLS PressSure™ Technology
- Manufactured from refrigerant grade copper
- Approved for A2L refrigerants
- Rated to 700 psi and tested to perform under pressure, vibration and thermal cycling
- Our flame-free, press fit elbows deliver secure, efficient connections that are as dependable as they are adaptable
