Rinnai® RL75IP RINRL75IP
  1. pin-int

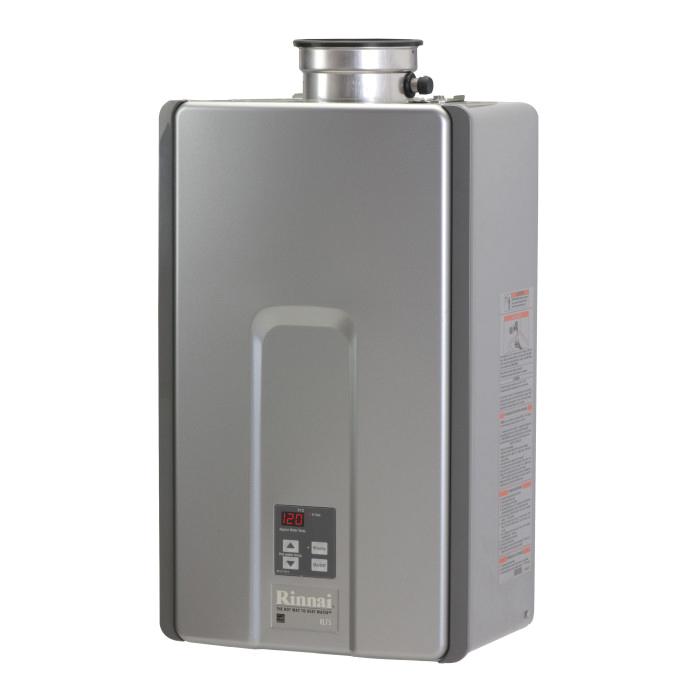

Rinnai® RL75IP Tankless Water Heater, 7.5 gpm, 10300 to 180000 Btu/hr, 76 W, Propane Gas

  • Manufacturer: Rinnai Corporation
  • Brand Name: Rinnai®
  • Part#: RINRL75IP
  • MPN: RL75IP
  • UPC: 766156006340
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

Rinnai® Tankless Water Heater, 7.5 gpm Capacity, 10300 to 180000 Btu/hr, 76 W, 0.4 gpm Flow Rate, 0.82 Energy Factor, 4/8/10 A, 12/120 V, 60 Hz, MNPT Connection, 20 to 150 psi, Propane Gas Fuel, Direct Electronic Ignition System, 98 to 120 deg F, 23 in H x 14.04 in W x 9.3 in D

Amperage Rating      :      4/8/10 A
BTU Rating      :      10300 to 180000 Btu/hr
Capacity      :      7.5 gpm
Connection Type      :      MNPT
Dimensions      :      23 in H x 14.04 in W x 9.3 in D
Energy Factor      :      0.82
Flow Rate      :      0.4 gpm
Frequency Rating      :      60 Hz
Fuel Type      :      Propane Gas
Ignition System      :      Direct Electronic
Power Rating      :      76 W
Pressure Rating      :      20 to 150 psi
Temperature Rating      :      98 to 120 deg F
Voltage Rating      :      12/120 V
  • Temperature controlled, continuous flow, gas hot water system
  • Water flow sensor, electronic water control device and fixed bypass
  • Rinnai® Circ-Logic - recirculation program cycles external pump
  • Water temperature control, simulation feed forward and feedback
  • Controller cables non-polarized 2-core cable, minimum 22 AWG wire
  • Safety devices - flame failure - flame rod, boiling protection, combustion fan rpm check, over current - glass fuse, remaining flame (OHS), thermal fuse, automatic frost protection
  • For use with manufactured (mobile) homes
