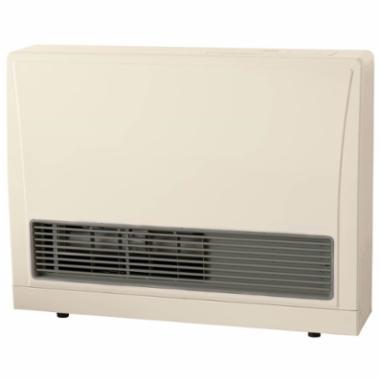

Rinnai® EX_DT Series EX22DT EX22DTP Direct Vent Wall Furnace, 8200 to 20700 Btu/hr Input Btu, 120 V, 30 W
- Manufacturer: Rinnai Corporation
- Brand Name: Rinnai®
- Part#: RINEX22DTP
- MPN: EX22DTP
- UPC: 766156016592
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
EX22DTP is a quick, flexible installed, ductless, propane gas, direct vent wall furnace from Rinnai, the perfect supplemental or specific zone heating solution that seeks out cold spots and within seconds begins to gently heat the room or space for maximum comfort. Wi-Fi enabled thermostat connection ready.
Rinnai® Direct Vent Wall Furnace, Series: EX_DT Series, Model: EX22DT, 120 V, 30 W, 60 Hz, 8200 to 20700 Btu/hr Input BTU Rating, 81 % AFUE Rating, MNPT Connection, Vent, Ducted or Ductless, Liquid Propane Gas Fuel, Electronic Spark Ignition, Surface Mounting, Beige, 60 to 80 deg F, 22.9 in H x 29.9 in W x 10.1 in D, Additional Information: Modulating Burner
| AFUE Rating | : | 81 % |
| Additional Information | : | Modulating Burner |
| Color | : | Beige |
| Connection Type | : | MNPT |
| Dimensions | : | 22.9 in H x 29.9 in W x 10.1 in D |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Liquid Propane Gas |
| Ignition Type | : | Electronic Spark |
| Input BTU Rating | : | 8200 to 20700 Btu/hr |
| Model | : | EX22DT |
| Mounting Type | : | Surface |
| Power Rating | : | 30 W |
| Series | : | EX_DT Series |
| Temperature Rating | : | 60 to 80 deg F |
| Vent, Ducted or Ductless | : | Vent |
| Voltage Rating | : | 120 V |
- Consistent, even heat
- Wall thermostat compatible
- Modulating technology
- User friendly controls
- High altitude approved
- Quiet operation
Instruction/Installation Manual
