Rinnai® EX11CTN RINEX11CTN
  1. pin-int

Rinnai® EX_CT EX11CTN Wall Furnace, 11000 Btu/hr Input BTU, 120 V, 44 W

  • Manufacturer: Rinnai Corporation
  • Brand Name: Rinnai®
  • Part#: RINEX11CTN
  • MPN: EX11CTN
  • UPC: 766156009839
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

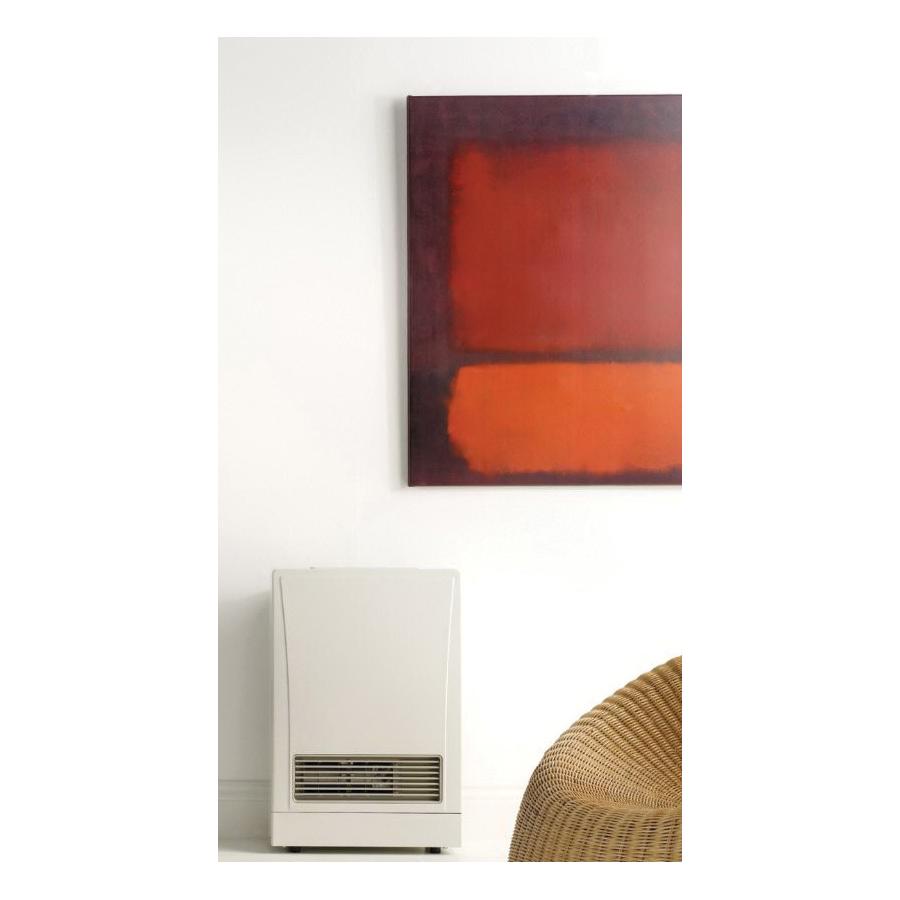

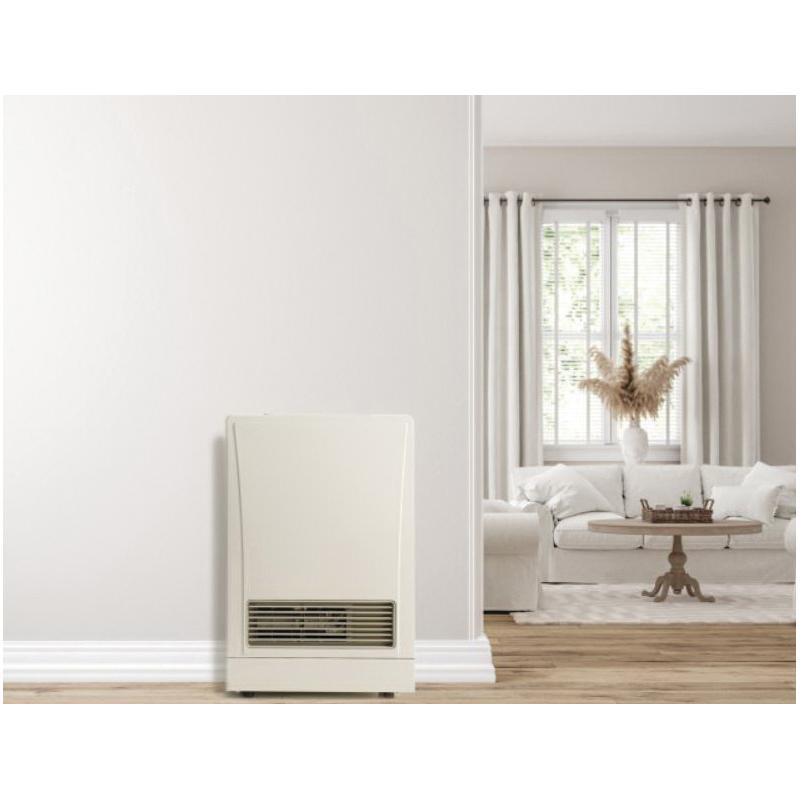

EX11CTN is a quick, flexible installed, ductless, natural gas, direct vent wall furnace from Rinnai® the perfect heating solution that seeks out cold spots and within seconds begins to gently heat the room or space for maximum comfort.

Rinnai® Wall Furnace, Model: EX_CT, 120 V, 44 W, 60 Hz, 11000 Btu/hr Input, 8800 Btu/hr Output, 81 % AFUE, Vent, Ducted or Ductless: Vent, Natural Gas, Electronic Spark Ignition, 60 to 80 deg F, 27.4 in H x 18.1 in W x 10.1 in D

AFUE Rating      :      81 %
Dimensions      :      27.4 in H x 18.1 in W x 10.1 in D
Frequency Rating      :      60 Hz
Fuel Type      :      Natural Gas
Ignition Type      :      Electronic Spark
Input BTU Rating      :      11000 Btu/hr
Model      :      EX_CT
Output BTU Rating      :      8800 Btu/hr
Power Rating      :      44 W
Product Depth      :      10.1 in / (257 mm)
Product Height      :      27.4 in / (695 mm)
Product Sub Series      :      EX_CT
Product Weight      :      46 lb / (21 kg)
Product Width      :      18.1 in / (465 mm)
Temperature Rating      :      60 to 80 deg F
Vent, Ducted or Ductless      :      Vent
Voltage Rating      :      120 V
Warranty - Standard for Residential      :      10 yrs on Heat Exchanger/ 5 years on Parts/ 2 Year on Labor
  • Restart capability - restarts automatically when ignition or combustion fails
  • Timer settings - starts and turns off the heater at two timer settings
  • Seven-stage modulating gas valve - provides precise gas flow by operating from one to seven stages
  • Negative coefficient thermistor - detects temperature change in 1/2 of a deg
  • Variable speed inducer motor with pressure switch - monitors and controls combustion fan and allows the appliance to overcome winds of up to 40 mph
  • Self-diagnostic electronics - continually monitors functions, provides auto shutdown codes, indicates
  • Quiet operation - reduces noise through use of swept blades in convection fan, quiet expansion/contraction of parts due to temperature changes
  • Wall thermostat connectable - ability to connect to a field supplied wall thermostat
