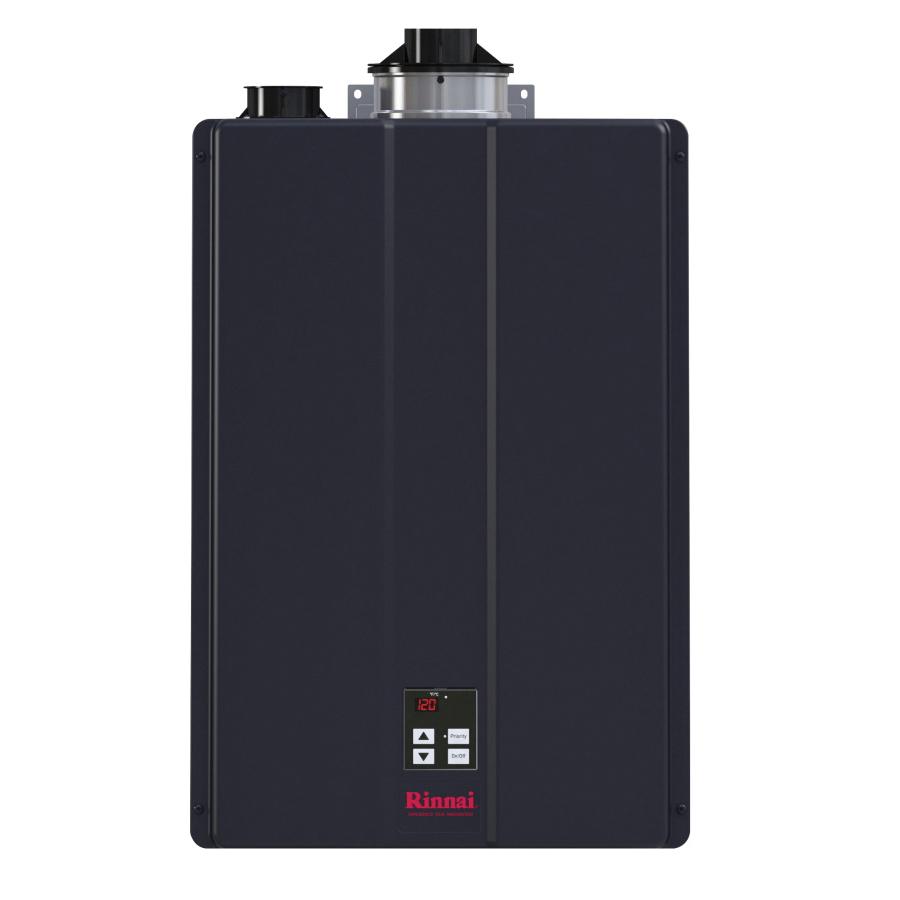

Rinnai® REU-N3237FFC-US CU199iN Commercial Tankless Water Heater, 15000 to 199000 Btu/hr, 84 W, Natural Gas
- Manufacturer: Rinnai Corporation
- Brand Name: Rinnai®
- Part#: RINCU199I
- MPN: CU199iN
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Commercial condensing tankless water heater CU199iN from Rinnai® is precision engineered to provide endless hot water for the most demanding of applications such as restaurants, hospitality, education institutions, multi-family residential buildings and more. CU199iN is designed for indoor installation, natural gas fuel, is Wi-Fi ready to monitor performance across multiple units to ensure up time is maintained. Multiple venting options offer installation flexibility to meet your existing layout or for new build optimization.
Rinnai® Commercial Tankless Water Heater, Series: CU Series, Model: REU-N3237FFC-US, 15000 to 199000 Btu/hr, 84 W, 0.26 to 9.8 gpm, 0.96 Energy Factor, 1.3 W Standby Loss, 97 % Efficiency, 4 A, 12/120 V, 60 Hz, NPT Connection Type, 50 to 150 psi, Yes Energy Star Compliant, Wall Mount, Natural Gas, Direct Electronic Ignition, 98 to 140 deg F, 31.3 in H x 18.5 in W x 11.45 in D, 10200 ft Altitude
| Altitude | : | 10200 ft |
| Amperage Rating | : | 4 A |
| BTU Rating | : | 15000 to 199000 Btu/hr |
| Connection Type | : | NPT |
| Dimensions | : | 31.3 in H x 18.5 in W x 11.45 in D |
| Efficiency | : | 97 % |
| Energy Factor | : | 0.96 |
| Energy Star Compliant | : | Yes |
| Flow Rate | : | 0.26 to 9.8 gpm |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas |
| Ignition System | : | Direct Electronic |
| Model | : | REU-N3237FFC-US |
| Mounting Type | : | Wall |
| Power Rating | : | 84 W |
| Pressure Rating | : | 50 to 150 psi |
| Series | : | CU Series |
| Standby Loss | : | 1.3 W |
| Temperature Rating | : | 98 to 140 deg F |
| Voltage Rating | : | 12/120 V |
- Complies with south coast air quality management district 14 ng/J or 20 ppm NOx emission levels
- Ultra low NOx
- Tankless Rack System™ compatible
- 1/2 in (13 mm) gas line compatible
