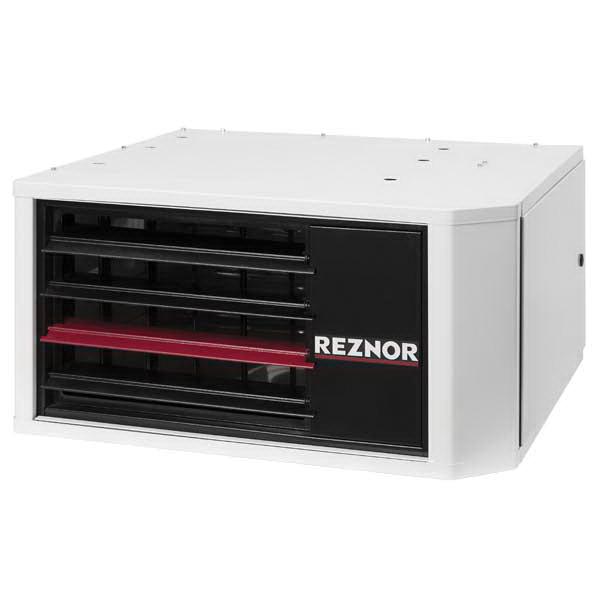

REZNOR® UEZ260 Gas Fired Unit Heater, 115 V, 10 A, 1020 W, 260000 Btu/hr, 239200 Btu/hr, 1 ph
- Manufacturer: Madison Air
- Brand Name: REZNOR®
- Part#: REZUEZ260
- MPN: UEZ260
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
REZNOR® model UEZ gas fired unit heaters are available in seven sizes ranging from 55000 to 305000 BTUH gas input. Model UEZ heaters are approved for installation in the United States and Canada by ETL. The secondary heat exchanger has a 1/2 in PVC pipe for attaching a coupling for ease of installation and cleaning of the required condensate drain. A 4 in PVC cleanout cap that is drilled and tapped for a 1/2 in NPT fitting is furnished with the heater for connecting the vent condensate drain. REZNOR® model UEZ unit heaters offer a sleek design sure to complement any space. The UEZ features a two-tone black and white powder-coated, scratch-resistant paint scheme with a single red louver. Each unit has clean rounded corners and edges with no visible screws or fasteners and the bottom is embossed with the REZNOR® logo. Model UEZ unit heaters provide the same superior performance customers have relied on for more than 100 years along with added features that improve monitoring capabilities and make servicing the unit easier and installation safer.
REZNOR® Gas Fired Unit Heater, Model: UEZ, 260000 Btu/hr, 239200 Btu/hr, 115 V, 10 A, 2 gph Flow Rate, 4430 cfm, 1/2 hp, 1020 W, 1 ph Phase, 60 Hz, NPT Connection, 3/4 in Connection, Natural Gas, Propane Gas Fuel, 24 in Fan, 93% Efficiency, PSC Motor, 1050 rpm Rotational Speed, 4 in Vent, 1 Stages, 20 A Fuse Rating, Black/White, Finish: Powder-Coated, 34-1/8 in H x 41 in W x 58 in D, Additional Information: Condensing, High Efficiency, Separated Combustion, Low Static Axial Fan
| Additional Information | : | Condensing, High Efficiency, Separated Combustion, Low Static Axial Fan |
| Amperage Rating | : | 10 A |
| BTU Rating | : | 260000 Btu/hr, 239200 Btu/hr |
| CFM Rating | : | 4430 cfm |
| Color | : | Black/White |
| Connection Size | : | 3/4 in |
| Connection Type | : | NPT |
| Dimensions | : | 34-1/8 in H x 41 in W x 58 in D |
| Efficiency | : | 93 % |
| Fan Size | : | 24 in |
| Finish | : | Powder-Coated |
| Flow Rate | : | 2 gph |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas, Propane Gas |
| Fuse Rating | : | 20 A |
| HP Rating | : | 1/2 hp |
| Model | : | UEZ |
| Motor Type | : | PSC |
| Number of Stages | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 1020 W |
| Rotational Speed | : | 1050 rpm |
| Vent Size | : | 4 in |
| Voltage Rating | : | 115 V |
- Orifice for natural gas with propane conversion kit included
- 50 to 60 deg F temperature rise range
- Integrated circuit board with seven segment display
- External status indicating LED
- Hinged door with quarter-turn latch
- Improved cabinet design with removable front face
- Integrated horizontal louvers in front face
- REZNOR® logo embossed on bottom of unit
- Models 130 to 310 utilize TCORE3® 409 stainless steel primary heat exchanger with extruded aluminum secondary heat exchanger
- Models 55 to 110 utilize aluminized steel primary heat exchanger with stainless steel secondary heat exchanger
- Patented single-burner combustion system including a one-piece burner assembly
- 115 V open fan motor with internal overload protection
- Transformer for 24 V controls
- Multi-try direct ignition with timed lockout
- Fan relay (included on the circuit board)
- Single-stage natural gas valve
- Vibration/noise isolated fan motor
- Sealed control compartment houses all electrical components
- 48-frame, ball bearing, PSC vented motor
- Two-point and four-point suspension
