REZNOR® UBZ30 Gas Fired Unit Heater, 115 V, 3.7 A, 215 W, 30000 Btu/hr, 24600 Btu/hr, 1 ph
- Manufacturer: Madison Air
- Brand Name: REZNOR®
- Part#: REZUBZ30
- MPN: UBZ30
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:

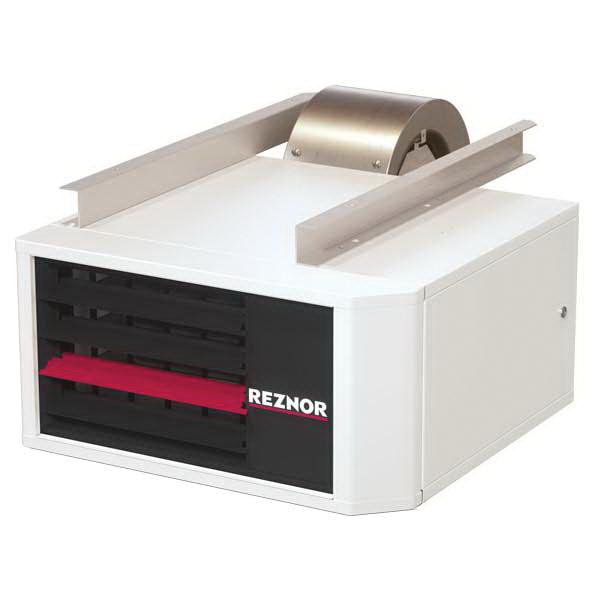

REZNOR® model UBZ gas fired unit heaters are available in 14 sizes ranging from 30000 to 400000 Btu/hr gas input. Model UBZ heaters are approved for installation in the United States and Canada by ETL. Each size cabinet is easily suspended from four suspension points. The low voltage terminal strip on the outside of the cabinet makes connecting control wiring easy with no panels to remove. The addition of terminal G to the strip, along with the new design of the circuit board, allows for fan only operation (without adding relays). REZNOR® model UBZ unit heaters offer a sleek design sure to complement any space. The UBZ features a two-tone black and white powder-coated, scratch-resistant paint scheme with a single red louver. Each unit has clean rounded corners and edges with no visible screws or fasteners and the bottom is embossed with the REZNOR® logo. Model UBZ unit heaters provide the same superior performance customers have relied on for more than 100 years along with added features that improve monitoring capabilities and make servicing the unit easier and installation safer.
REZNOR® Gas Fired Unit Heater, Model: UBZ, 30000 Btu/hr, 24600 Btu/hr, 115 V, 3.7 A, 304 to 506 cfm, 1/6 hp, 215 W, 1 ph Phase, 60 Hz, Pipe Connection, 1/2 in Connection, Natural Gas, Propane Gas Fuel, 9 x 6 in Fan, 82% Efficiency, Blower Motor, 4 in Vent, Direct Spark Ignition, Direct Drive, 1 Stages, 15 A Fuse Rating, 40 dBA Sound Level, Black/White, Finish: Powder-Coated, 17-3/16 in H x 27 in W x 40-3/32 in D, Additional Information: Separated Combustion, High Static Blower Fan
| Additional Information | : | Separated Combustion, High Static Blower Fan |
| Amperage Rating | : | 3.7 A |
| BTU Rating | : | 30000 Btu/hr, 24600 Btu/hr |
| CFM Rating | : | 304 to 506 cfm |
| Color | : | Black/White |
| Connection Size | : | 1/2 in |
| Connection Type | : | Pipe |
| Dimensions | : | 17-3/16 in H x 27 in W x 40-3/32 in D |
| Drive Type | : | Direct |
| Efficiency | : | 82 % |
| Fan Size | : | 9 x 6 in |
| Finish | : | Powder-Coated |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Natural Gas, Propane Gas |
| Fuse Rating | : | 15 A |
| HP Rating | : | 1/6 hp |
| Ignition Type | : | Direct Spark |
| Model | : | UBZ |
| Motor Type | : | Blower |
| Number of Stages | : | 1 |
| Phase | : | 1 ph |
| Power Rating | : | 215 W |
| Sound Level | : | 40 dBA |
| Vent Size | : | 4 in |
| Voltage Rating | : | 115 V |
- Integrated circuit board with seven segment display
- External status indicating LED
- Hinged door with quarter-turn latch
- Improved cabinet design with removable front face
- Integrated horizontal louvers in front face
- TCORE2® titanium stabilized aluminized steel heat exchanger
- Patented single-burner combustion system including a one-piece burner assembly
- Built-in disconnect switch (20 A at 115 V rating)
- 115 V open drip-proof blower motor with internal overload protection
- Direct drive blower with multi-speed taps
- Transformer for 24 V controls
- Sealed control compartment houses all electrical components
- Multi-try direct spark ignition with timed lockout
- Blower relay (included on the circuit board)
- Single-stage natural gas valve (field adjustable for operation to 10000 ft elevation)
- Vibration/noise isolated fan and venter motors - designed for low noise operation
- Four-point suspension
- External terminal strip for 24 V wiring
- External gas pipe connection
- Sealed junction box for supply wiring
