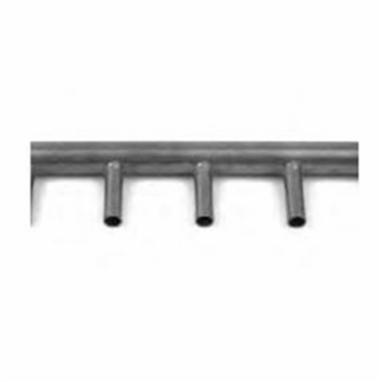

Rehau® 250827-001 Header Manifold, Copper, 32 gpm, 24-Outlet
- Manufacturer: Rehau
- Brand Name: Rehau®
- Part#: REH11434COPHEA
- MPN: 250827-001
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Manifolds are type L copper with open ends, in sizes indicated. Copper outlets are high temperature brazed (lead-free) into headers. Each manifold is 72 in (183 cm) L with 24-outlets at 3 in on-center, except the 2 x 1 in manifold (Art. 250850) which has 18-outlets at 4 in on-center. Outlets are 2 in L as shown. Manifolds can easily be cut to length by cutting in the center between two-outlets. Do not exceed maximum flow rates listed above. Use with Rehau® fittings and valves to assemble complete manifolds for heating application.
Rehau® Header Manifold, 32 gpm Flow Rate, 24 Outlets, 3 in Circuit Spacing, Copper, 1-3/8 in Dia x 72 in L, Additional Information: 3/4 in Outlet Size
| Additional Information | : | 3/4 in Outlet Size |
| Circuit Spacing | : | 3 in |
| Dimensions | : | 1-3/8 in Dia x 72 in L |
| Flow Rate | : | 32 gpm |
| Material | : | Copper |
| Number of Outlets | : | 24 |
