Rehau® RAUPANEL™ 235307 Radiant Heating Panel System, 72 in L x 6 in W x 5/8 in H

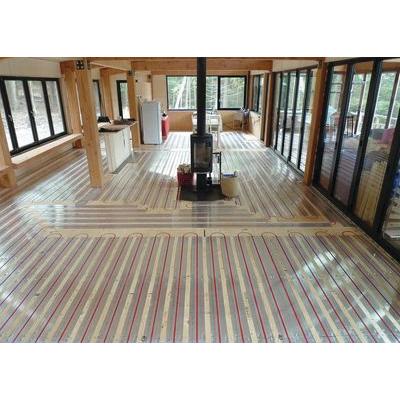

Furring strips are to be used in conjunction with 8 in return bends to facilitate proper spacing of RAUPANEL™ and to provide a nailing surface for the floor covering. Installed without furring strips, RAUPANEL™ allows for a pipe spacing of 6 in (152 mm) on-center. Reference the table below for product dimensions and square footage. Follow RAUPANEL™ system installation guide (855.625) for instructions on design and use of this product. RAUPANEL™ is 5/8 in THK and designed for use with 3/8 in. RAUPEX® O2 barrier pipe.

Rehau® RAUPANEL™ Radiant Heating Panel System, 72 in L x 6 in W x 5/8 in H

• 50% higher heat output can satisfy demands of colder regions
• 270 deg contact between pipe and highly conductive aluminum panel delivers quick response, making nighttime setback feasible
• Built-in air pocket and wide contact surface efficiently directs heat upward
• Lower fluid temperature requirements uniquely qualify RAUPANEL™ to work with low temperature radiant heating and geo exchange systems
• Choice of 6 or 8 in on center spacing yields precise pipe layouts

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Rehau_235307_Instruction_Installation_Manual.pdf
• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Rehau_281811_001_Catalog.pdf
• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Rehau_281811_001_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Rehau_235307_Instruction_Installation_Manual.pdf
