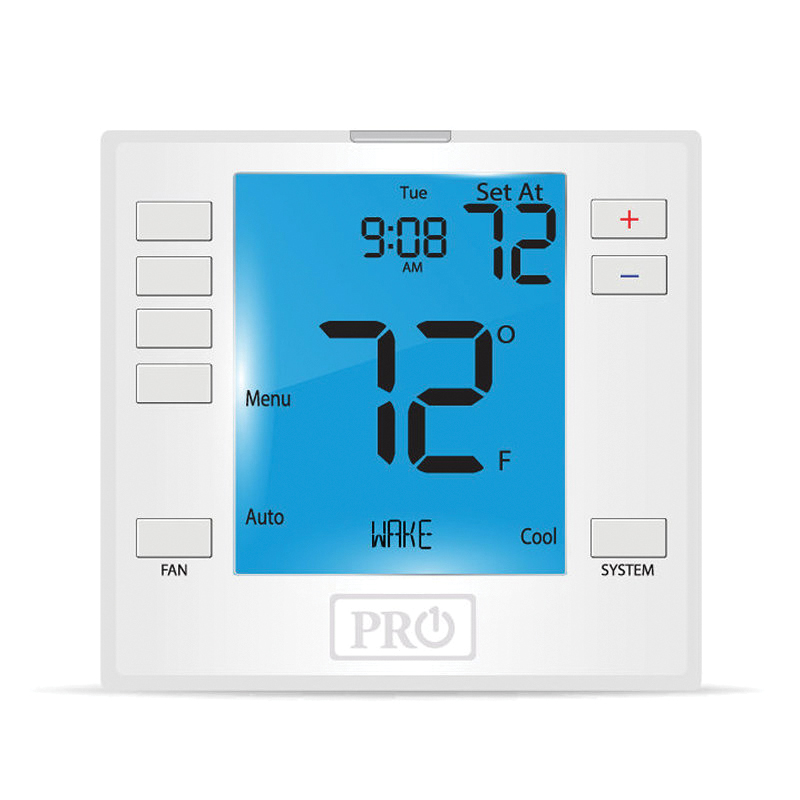

PRO1® T755 PROT755
  1. pin-int

PRO1® T755 Programmable Thermostat, 18 to 30 VAC, 5/1/1 day Program Programmability, 2, 3 Heat/2 Cool

  • Manufacturer: Pro1 IAQ
  • Brand Name: PRO1®
  • Part#: PROT755
  • MPN: T755
  • UPC: 095247201587
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

PRO1® Programmable Thermostat, 18 to 30 VAC, 50/60 Hz Frequency, Programmability: 5/1/1 day Program, Battery, Hardwired Power Source, 2, 3 Heat/2 Cool Stages, Switch Position: HEAT-OFF-COOL-EMERGENCY (System), AUTO-ON (Fan), 4 sq-in LCD Display, 0.2 to 2 deg F Differential, 41 to 95 deg F Settings, 32 to 105 deg F, 90% Non-Condensing Humidity, +/-1 deg F Accuracy, Wall, Junction Box Mounting, Terminal Designation: RH, RC, C, Y, Y2, W/E, W2 G, O, B, White, Dimensions: 4.4 in H x 4.7 in W x 1.1 in D

Accuracy      :      +/-1 deg F
Color      :      White
Differential Temperature      :      0.2 to 2 deg F
Dimensions      :      4.4 in H x 4.7 in W x 1.1 in D
Display Type      :      4 sq-in LCD
Frequency Rating      :      50/60 Hz
Humidity Rating      :      90% Non-Condensing
Mounting Type      :      Wall, Junction Box
Power Source      :      Battery, Hardwired
Programmability      :      5/1/1 day Program
Stages      :      2, 3 Heat/2 Cool
Switch Position      :      HEAT-OFF-COOL-EMERGENCY (System), AUTO-ON (Fan)
Temperature Rating      :      32 to 105 deg F
Temperature Settings      :      41 to 95 deg F
Terminal Designation      :      RH, RC, C, Y, Y2, W/E, W2 G, O, B
Voltage Rating      :      18 to 30 VAC
  • Easy menu driven programming
  • Intuitive wake, leave, return, sleep programming icons
  • Blue backlight
  • Glow in the dark light button
  • Separate heating and cooling swing (cycle rate) adjustments
  • Electric or gas configurable
  • Separate B and O terminals
  • Filter change indicator (selectable on or off)
  • Room temperature calibration adjustments
  • 5 min compressor delay protection (selectable on or off)
  • Simple private label badge system
  • Easy wire color-coded terminal blocks
  • Universal sub-base
  • Battery or 24 V power
  • 1 A per terminal/1.5 A maximum all terminals combined load rating
  • 18 - 30 VAC, NEC class II, 50/60 Hz for hardwire (common wire)
  • Battery power from 2 AA alkaline energizer batteries
  • 700 platform
