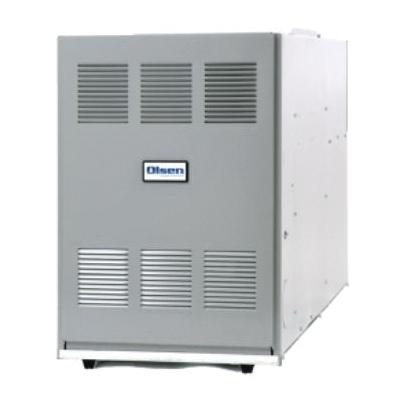

Olsen BCL Lowboy Series BCL145ST2 Oil Fired Furnace, 140000 Btu/hr Input, 1/2 hp, 84.4 % AFUE, Steel
- Manufacturer: BDR Thermea Group
- Brand Name: Olsen
- Part#: OLBCL145ST2
- MPN: BCL145ST2
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
The lowboy Series of oil-fired furnaces provide the best value in heating comfort for your family. The lowboy Series is capable of achieving up to 84.4% efficiency due to its unique heat exchanger design, high performance oil burners and increased fiber-reinforced foil faced cabinet insulation. The result is increased energy savings and lower fuel bills.
Olsen Oil Fired Furnace, Series: BCL Lowboy Series, 1/2 hp HP Rating, 140000 Btu/hr Input, 84.4 % AFUE, 4 ton Tonnage, 20 x 25 x 1 in Filter, PSC Direct Drive Drive, Blower Motor, Chimney Vent, Steel, 41 in H x 22 in W x 51-1/2 in D, Additional Information: 20-1/2 x 18-5/8 in Plenum
| AFUE Rating | : | 84.4 % |
| Additional Information | : | 20-1/2 x 18-5/8 in Plenum |
| Dimensions | : | 41 in H x 22 in W x 51-1/2 in D |
| Drive Type | : | PSC Direct Drive |
| Filter Size | : | 20 x 25 x 1 in |
| HP Rating | : | 1/2 hp |
| Input BTU Rating | : | 140000 Btu/hr |
| Material | : | Steel |
| Motor Type | : | Blower |
| Series | : | BCL Lowboy Series |
| Tonnage | : | 4 ton |
| Vent Type | : | Chimney |
- Welded steel heat exchanger
- Rear flue (6 in diameter)
- Barometric damper
- Air conditioning ready, up to 4 ton
Instruction/Installation Manual
