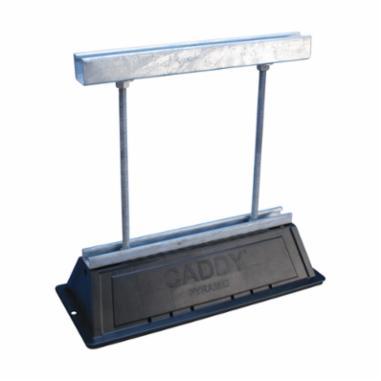

nVent ERICO PSA16AH18 Rooftop Pyramid ST Adjustable Strut Support, 16 to 19 in L, 8 in W
- Manufacturer: nVent
- Brand Name: nVent ERICO
- Part#: ERCPSA16AH18
- MPN: PSA16AH18
- UPC: 782856843085
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
nVent ERICO Rooftop Pyramid ST Adjustable Strut Support, 16 to 19 in Length, 8 in Width, 1500 lb Load Capacity, Polypropylene/Polyethylene/Steel, Hot-Dipped Galvanized, -50 to 150 deg F, Additional Information: 3:1 Static Load Safety Factor, 7 to 18 in H Dimensions, 142 sq-in Surface Area
| Additional Information | : | 3:1 Static Load Safety Factor, 7 to 18 in H Dimensions, 142 sq-in Surface Area |
| Finish | : | Hot-Dipped Galvanized |
| Length | : | 16 to 19 in |
| Load Capacity | : | 1500 lb |
| Material | : | Polypropylene/Polyethylene/Steel |
| Temperature Rating | : | -50 to 150 deg F |
| Width | : | 8 in |

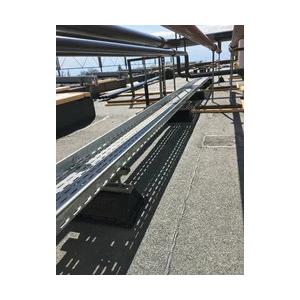

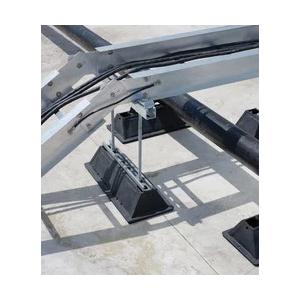

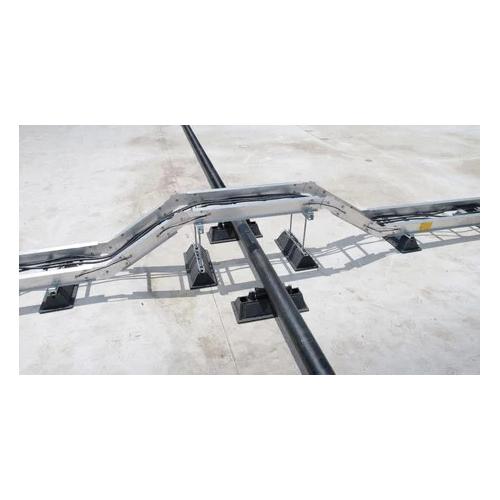

- Height adjustability provides effective navigation of pipe, conduit, duct and cable tray around obstructions
- Foam bottom offers low abrasion interface for better roof membrane protection
- Compatible with roof surfaces including single ply, bituminous, metal and spray foam
- Provides superior load distribution, even with varying rooftop surfaces
- Ready to use out of the box, saving installation time and labor
- Multiple sizes and load ratings offer the ability to tailor the solution to the application
- Hot-dip galvanized and UV stabilized for long-lasting performance
Specification Sheet
