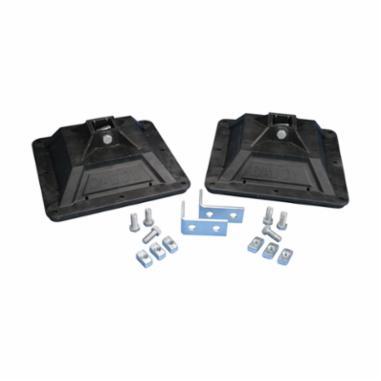

nVent ERICO PHKR Rooftop Pyramid H-Frame Kit, 12-3/8 in L, 12-3/8 in W, Polypropylene/Polyethylene
- Manufacturer: nVent
- Brand Name: nVent ERICO
- Part#: ERCPHKR
- MPN: PHKR
- UPC: 782856845317
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
nVent ERICO Rooftop Pyramid H-Frame Kit, 12-3/8 in Length, 12-3/8 in Width, 1500 lb Load Capacity, Polypropylene/Polyethylene, -30 to 130 deg F, Additional Information: 3:1 Static Load Safety Factor, 4.66 in H Dimension, 287 sq-in Surface Area
| Additional Information | : | 3:1 Static Load Safety Factor, 4.66 in H Dimension, 287 sq-in Surface Area |
| Length | : | 12-3/8 in |
| Load Capacity | : | 1500 lb |
| Material | : | Polypropylene/Polyethylene |
| Suitable For Use With | : | 1-5/8 in Type A Strut |
| Temperature Rating | : | -30 to 130 deg F |
| Width | : | 12-3/8 in |
- Foam or rubber bottom offers low abrasion interface for better roof membrane protection
- Compatible with roof surfaces including single ply, bituminous, metal and spray foam
- Provides superior load distribution, even with varying rooftop surfaces

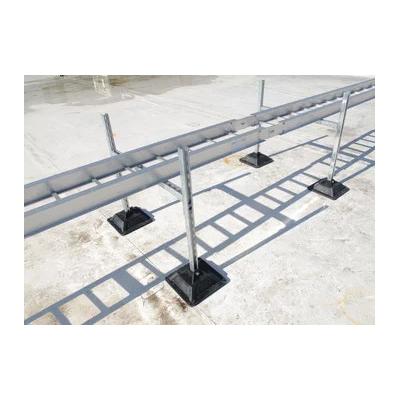

- Rubber rooftop interface ideal for solar panel array installations
- Hot-dip galvanized and UV stabilized for long-lasting performance
- Accepts standard strut channels
Specification Sheet
