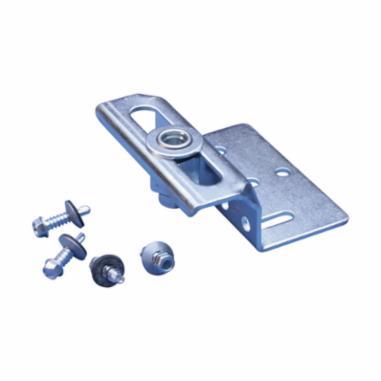

nVent CADDY CRLD37BEG Rod Lock Bottom-Mount Duct Bracket, 650 lb Load, Steel, Electro-Galvanized
- Manufacturer: nVent
- Brand Name: nVent CADDY
- Part#: ERCCRLD37BEG
- MPN: CRLD37BEG
- UPC: 782856793946
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
nVent CADDY Rod Lock Bottom-Mount Duct Bracket, 650 lb Load Capacity, 3-1/2 in Length, 4 in Width, 1.7 in Height, Steel, Electro-Galvanized, Additional Information: 3/8 in Rod
| Additional Information | : | 3/8 in Rod |
| Dimensions | : | 3.5 in L x 4 in W x 1.7 in H |
| Finish | : | Electro-Galvanized |
| Height | : | 1.7 in |
| Length | : | 3-1/2 in |
| Load Capacity | : | 650 lb |
| Material | : | Steel |
| Rod Size | : | 0.38 in |
| Width | : | 4 in |

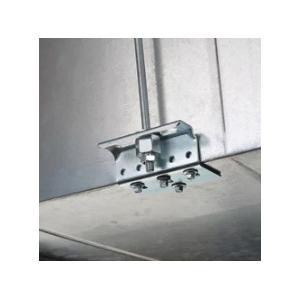

- Ideal for modular assembly - allows attachment of brackets to sections of duct while safely on the ground
- Slotted holes in bracket allow for horizontal adjustment of the bracket relative to the duct
- Easy push-to-install design allows installers to simply push the threaded rod through the-mounting hole, instantly holding it in position
- Ready to use out of the box and eliminates the need for cutting and preparing sections of strut, angle iron or strap
- Integrated adjustment nut enables fine tuning the system height up or down
- Lock nut can be finger-tightened, locking the rod in place
- Extremely useful in-tight spaces where wrenches are difficult to use
- Includes self-tapping sheet metal screws to attach bracket to duct
