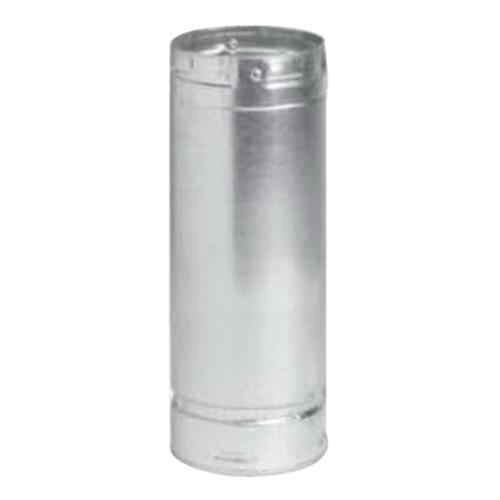

Metal-Fab® M Series 3M5 Pipe, 3 in, 60 in L, Twist-Lock, Aluminum Alloy/Steel
- Manufacturer: Metal-Fab Inc
- Brand Name: Metal-Fab®
- Part#: MET3M5
- MPN: 3M5
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Metal-Fab® Pipe, M Series, 3 in Nominal, Twist-Lock Connection, 0.012 in, 0.018 in Gauge, Aluminum Alloy/Steel, Galvanized, 530 deg F, 60 in Length
| Connection Type | : | Twist-Lock |
| Finish | : | Galvanized |
| Gauge | : | 0.012 in, 0.018 in |
| Length | : | 60 in |
| Material | : | Aluminum Alloy/Steel |
| Nominal Size | : | 3 in |
| Series | : | M Series |
| Temperature Rating | : | 530 deg F |
- Vent overlaps 1-1/2 in when joined together, therefore, assembled length is 1-1/2 in less than listed length
- SureLock positive twist-lock
- Elimination of sharp edges by hemming the flue and casing
- Assembly and disassembly without tools, using positive twist-lock
- 360 deg rotation of small diameter fittings using swivel tees, wyes and elbows
- Space savings inside standard stud walls using oval pipe
- The vent shall be of the double wall, factory built type for use with approved category I appliance burning natural or LP gas, which produce flue gases exhausted at temperatures not exceeding 550 deg F
- The vent pipe shall incorporate a push tab locking system to prevent disassembly of vent during or after installation
- B vent shall be installed in accordance with the vent manufacturer's installation instructions, UL listing and state or local codes
- Type B vent shall be warranted by the manufacturer against defects in material and workmanship for a period of 1 Year from the date of the original installation
- Air insulated
- Vent overlaps 1-1/2 in when joined together
