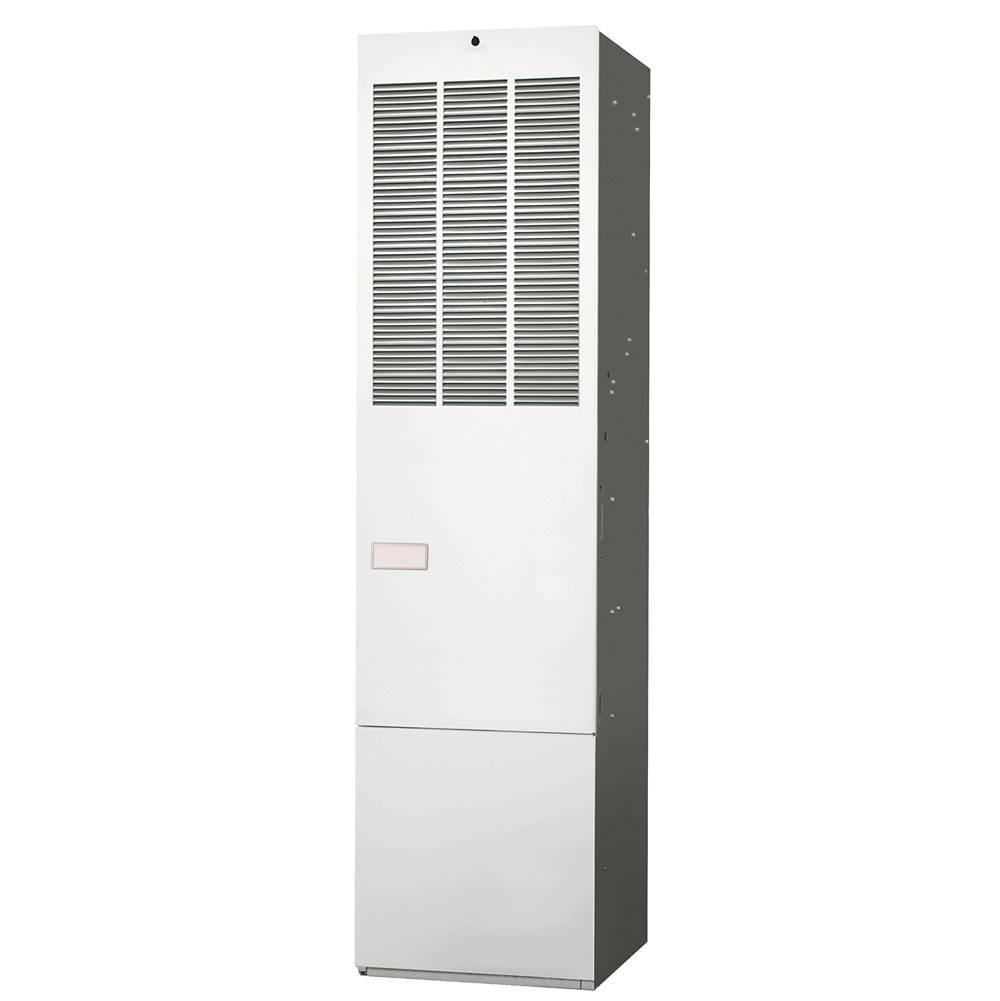

Mars® MG2R-045F1ABM1 High Efficiency/Direct Vent Condensing Gas Furnace, 120 V, 927 cfm, 3/4 hp, 95 % AFUE, Downflow
- Manufacturer: Mars
- Brand Name: Mars®
- Part#: COMMG2R045F1ABM1
- MPN: MG2R-045F1ABM1
- UPC: 663132389148
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
The high efficiency down flow gas furnace is designed for all manufactured housing applications. It may be installed in a utility room or enclosed in a closet. CSA design certified for use in the United States and Canada.
Mars® High Efficiency/Direct Vent Condensing Gas Furnace, Series: MG2R Series, 45000 Btu/hr Input, 43000 Btu/hr Output, 120 V, 10.8 A, CFM Rating: 927 cfm, 3/4 hp HP Rating, 95 % AFUE, 1 ph, 60 Hz, 1 Stage, Downflow Configuration, NPT Connection Type, 1/2 in Connection, Liquid Propane/Natural Gas, 5 Speed, 76 in H x 19-7/8 in W x 24-5/8 in D Cabinet, ECM Motor, Vent, Ducted or Ductless: Vent, 20 A Fuse, Hot Surface Ignition, 0.3 in-WC, 35 to 65 deg F Rise, Additional Information: Insulated Manufactured Housing Cabinet
| AFUE Rating | : | 95 % |
| AFUE | : | 0.95 |
| Additional Information | : | Insulated Manufactured Housing Cabinet |
| Amperage Rating | : | 10.8 A |
| CFM Rating | : | 927 cfm |
| Cabinet Dimensions | : | 76 in H x 19-7/8 in W x 24-5/8 in D |
| Cabinet | : | Insulated |
| Configuration | : | Downflow |
| Connection Size | : | 1/2 in |
| Connection Type | : | NPT |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Liquid Propane/Natural Gas |
| Fuse Rating | : | 20 A |
| HP Rating | : | 3/4 hp |
| Ignition System | : | Hot Surface |
| Input BTU Rating | : | 45000 Btu/hr |
| Motor Type | : | ECM |
| Number of Speeds | : | 5 |
| Number of Stages | : | 1 |
| Output BTU Rating | : | 43000 Btu/hr |
| Phase | : | 1 ph |
| Pressure Rating | : | 0.3 in-WC |
| Series | : | MG2R Series |
| Temperature Rise | : | 35 to 65 deg F |
| Vent, Ducted or Ductless | : | Vent |
| Voltage Rating | : | 120 V |
- 100% fired and tested
- Dependable, hot surface ignitor
- Stainless steel secondary heat exchanger
- Sealed combustion system
- Fully insulated cabinet
- ECM constant torque motor
- Diagnostic lights for easy troubleshooting, without counting flashes
Specification Sheet
