Mars® CMH18/36PM1M COMCMH1836PM1M
  1. pin-int

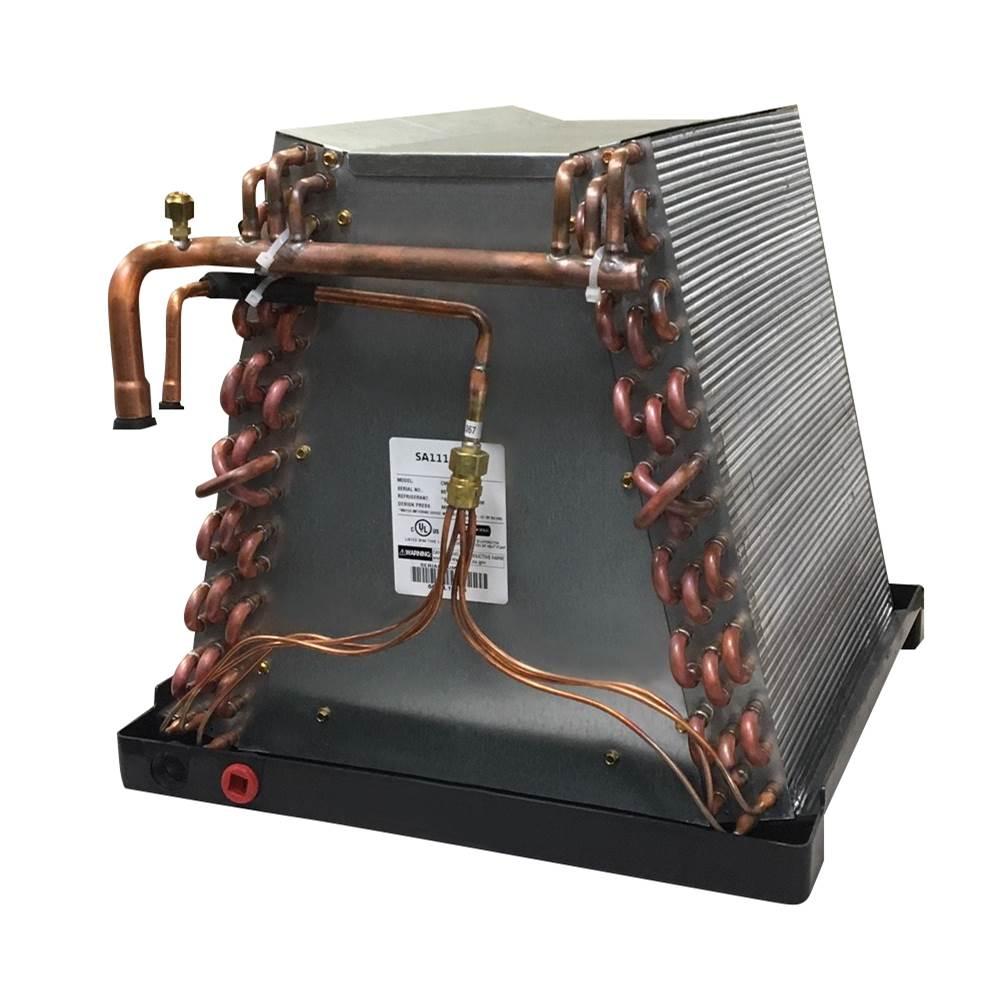

Mars® CMH18/36PM1M Uncased Manufactured Housing Evaporator Coil, Fin and Tube Coil, 1.5 to 3 ton

  • Manufacturer: Mars
  • Brand Name: Mars®
  • Part#: COMCMH1836PM1M
  • MPN: CMH18/36PM1M
  • UPC: 847283024428
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

Mars® Uncased Manufactured Housing Evaporator Coil, Series: CMH Series, 18 in W x 19-1/2 in D Drain Pan, 1.5 to 3 ton Tonnage, R-410A, Fin and Tube Coil, 17 in H x 18 in W x 19-1/2 in D, For Use With: DGAA, DGAX, EB and EU Furnaces, Additional Information: Piston Metering Device, 19-5/8 in W Furnace, 3/8 in Liquid Line, 3/4 in Suction Line, Vertical Position

Additional Information      :      Piston Metering Device, 19-5/8 in W Furnace, 3/8 in Liquid Line, 3/4 in Suction Line, Vertical Position
Cased/Uncased      :      Uncased
Coil Type      :      Fin and Tube
Depth (in.)      :      19.5
Dimensions      :      17 in H x 18 in W x 19-1/2 in D
Drain Pan Size      :      18 in W x 19-1/2 in D
Fits Furnace Width (in.)      :      19.625
Height (in.)      :      17
Liquid Line Connection (in.)      :      3/8
Metering Device      :      Piston
Nom. Capacity (Tons)      :      1.5-3
Positioning      :      Vertical
Refrigerant Type      :      R-410A
Refrigerant      :      R-410A
Series      :      CMH Series
Suction Line Connection (in.)      :      3/4
Suitable For Use With      :      DGAA, DGAX, EB and EU Furnaces
Tonnage      :      1.5 to 3 ton
Use On      :      DGA(A,X) or EB, EU furnaces
Width (in.)      :      18
  • Rifled copper tubing, enhanced aluminum fins
  • Immersion-tested at 500 psi, then nitrogen pressurized and sealed
  • Left-hand refrigerant and plumbing connections
  • Externally-mounted flowrate body with Schrader® valve
  • Heavy-duty plastic drain pans on all models
  • AHRI certifiable with certain brands of A/C and heat pump systems
  • UL listed for use with R-22 and R-410A when proper metering device is used
