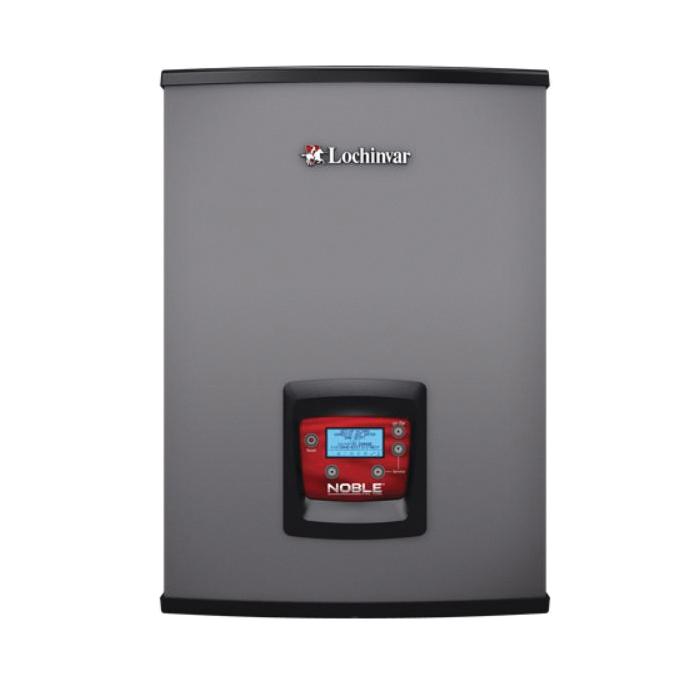

Lochinvar® NOBLE® NKB110N Fire Tube Boiler, 95 % AFUE, 110000 Btu/hr BTU, 1.4 gal Capacity, 120 V, 1 ph Phase
- Manufacturer: Lochinvar
- Brand Name: Lochinvar®
- Part#: LOCNKB110N
- MPN: NKB110N
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
NOBLE® is easy to install, setup and service and promises to deliver the lasting reliability and serviceability the industry has come to expect from a Lochinvar® boiler.
Lochinvar® NOBLE® Fire Tube Boiler, 120 V, 0.70 A, 60 Hz Frequency, 1 ph, 95 % AFUE, 110000 Btu/hr BTU, 1.4 gal Capacity, 30 psi Pressure, Universal Vent Connection, Gas, Water Fuel, Direct Vent, Chimney/Breeching/Vent Size: 3 in, Direct Spark Ignition, Net Rating: 89 mbh, 7.33 sq-ft Area, Wall Mounting, Stainless Steel, Dimensions: 24 in H x 17-1/4 in W x 18 in D
| AFUE Rating | : | 95 % |
| Amperage Rating | : | 0.70 A |
| Area | : | 7.33 sq-ft |
| BTU Rating | : | 110000 Btu/hr |
| Capacity | : | 1.4 gal |
| Chimney/Breeching/Vent Size | : | 3 in |
| Connection Type | : | Universal Vent |
| Dimensions | : | 24 in H x 17-1/4 in W x 18 in D |
| Frequency Rating | : | 60 Hz |
| Fuel Type | : | Gas, Water |
| Ignition Type | : | Direct Spark |
| Material | : | Stainless Steel |
| Mounting Type | : | Wall |
| Net Rating | : | 89 mbh |
| Phase | : | 1 ph |
| Pressure Rating | : | 30 psi |
| Vent Type | : | Direct |
| Voltage Rating | : | 120 V |
- 10:1 turndown ratio
- Features SMART CONTROL™ operating control
- Outdoor reset control with outdoor air sensor
- Programmable system efficiency optimizers
- Three-pump control system pump, boiler pump, DHW pump
- Low voltage terminal strip - flow switch contacts, low water cut-off connection, system sensor contacts, outdoor air sensor contacts, cascade contacts
- Time clock for data logging - last 10 lockouts
- Low water flow safety control and indication
- Password security
- Built-in cascading sequencer for up to 8 units
- Modulating burner with 10:1 turndown - direct spark ignition, low NOx operation
- Condensate trap
- Automatic reset high limit
- Adjustable high limit with manual reset
- Zero clearances to combustible materials
Instruction/Installation Manual
