Lochinvar® LMA040KD LOC40GALELE
  1. pin-int

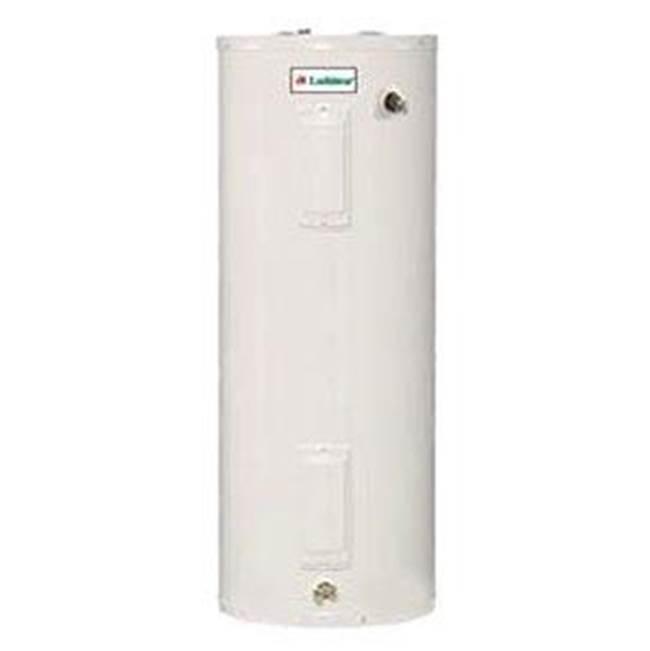

Lochinvar® LMA040KD Medium Residential Electric Water Heater, 40 gal, 1 ph, 240 V

  • Manufacturer: Lochinvar
  • Brand Name: Lochinvar®
  • Part#: LOC40GALELE
  • MPN: LMA040KD
  • UPC: 067165022309
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

Lochinvar® residential electric water heaters are available in tall models from 30 to 120 gal and short models from 30 to 50 gal. Various combinations of elements, wiring and voltages can be furnished to meet most applications. Every unit features a sophisticated design for high efficiency, low standby loss, high first hour delivery and money saving performance. All water heaters are triple tested during fabrication to ensure the highest standards of quality and performance for a long service life.

Lochinvar® Medium Residential Electric Water Heater, 40 gal Capacity, 52 gph First Hour Delivery, 0.92 Energy Factor, 21 gph at 90 deg F Recovery Rate, 4500 W Element Wattage, 240 V, 1 ph Phase, 3/4 in Connection, 150 psi, Steel, 20-1/2 in Dia x 44 in H, Screw-In Element, Copper Element

Capacity      :      40 gal
Connection Size      :      3/4 in
Dimensions      :      20-1/2 in Dia x 44 in H
Element Material      :      Copper
Element Type      :      Screw-In
Element Wattage      :      4500 W
Energy Factor      :      0.92
First Hour Delivery      :      52 gph
Material      :      Steel
Phase      :      1 ph
Pressure Rating      :      150 psi
Recovery Rate      :      21 gph at 90 deg F
Voltage Rating      :      240 V
  • Adjustable thermostat - this accurate control provides an easy way to reset water temperature for best economy
  • An automatic over heat safety device is standard
  • Glass-lined steel tank - the durable glass lining is fused to the tank at 1600 deg F to assure lasting protection against rust and corrosion while providing clean, clear hot water
  • 300 psi test pressure provides 150 psi working pressure
  • Tank saver anode - a large diameter, high capacity anode inhibits corrosion of the tank interior for long, trouble-free service
  • Immersion-type heating elements - copper sheath design for longer life in hard, aggressive water
  • Non-CFC foam insulation - superior material formulation provides uniform tank coverage with a thick blanket of insulating foam
  • This non-CFC polyurethane closed cell foam minimizes standby losses and maximizes heat retention
  • Screw-in elements - for easy replacement and service
  • Heat trap - the heat trap protects from heat loss through the water piping
  • Temperature and pressure relief valve - factory installed
  • Brass drain valve
