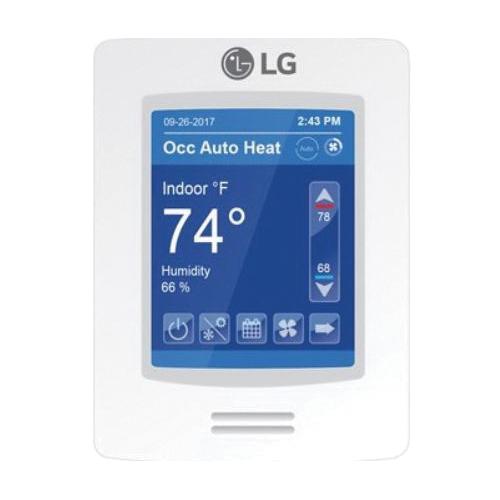

LG MultiSITE PREMTBVC1 Remote Controller
- Manufacturer: LG Electronics
- Brand Name: LG
- Part#: LGPREMTBVC1
- MPN: PREMTBVC1
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:

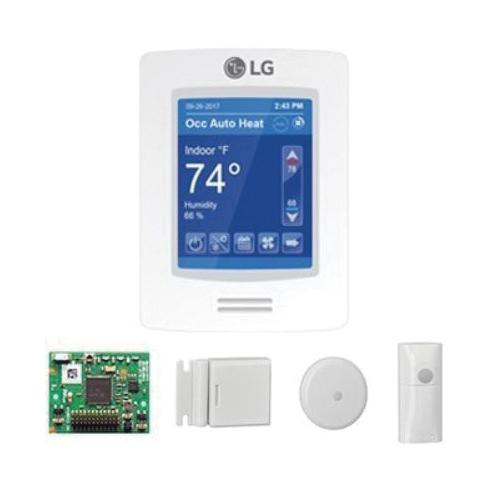

The MultiSITE remote controller is a part of the LG MultiSITE controls suite. This latest addition to LG's remote controller line features a customizable home screen with a highly intuitive user interface. The MultiSITE remote controller allows customers to tailor the functions and appearance to meet the needs of their application. Please refer to the MultiSITE remote controller accessories page.
LG MultiSITE Remote Controller, 12 V, 32 to 122 deg F, 3.39 in Overall Width, 1.06 in Overall Depth
| Overall Depth | : | 1.06 in |
| Overall Width | : | 3.39 in |
| Temperature Rating | : | 32 to 122 deg F |
| Voltage Rating | : | 12 V |
- Customizable color digital touch screen interface with multi-language support
- BACnet® MS/TP
- ZigBee Pro® wireless network
- Role-based configuration (password protected)
- Function code settings
- Function code search tool
- Date and time display
- Room temperature display
- Operation - on/off
- Mode - auto/cool/dry/heat/fan only
- Occupied cooling and heating temperature set points
- Unoccupied cooling and heating temperature set points
- Seven-day scheduling with mode
- Fan speed - auto/low/med/high/power
- Discharge vanes - auto/swing/fixed
- Static pressure installer setting
