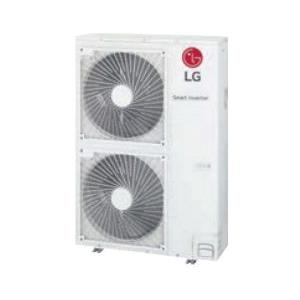

LG LUU420HHV 1-Zone Heat Pump Outdoor Unit, 208/230 V, 26.50 A, 42000 Btu/hr Cooling, 1 ph Phase, R-410A Refrigerant
- Manufacturer: LG Electronics
- Brand Name: LG
- Part#: LGLUU420HHV
- MPN: LUU420HHV
- UPC: 482313929900
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
LG 1-Zone Heat Pump Outdoor Unit, 208/230 V, 26.50 A, 3.36 kW Cooling, 4.5 kW Heating Power, 60 Hz Frequency, 1 ph, Heating BTU Rating: 51400 Btu/hr at 17 deg F, 48000 Btu/hr at 5 deg F, 41820 Btu/hr at -4 deg F, Cooling BTU Rating: 42000 Btu/hr, Cooling CFM Rating: 1412 cfm High, 1200 cfm Medium, 988 cfm Low, 12.5 EER, 19 SEER, 10.9 HSPF, 1-Stage Scroll Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 5/8 in Suction Line, Heating Sound Level: 56 dBA, Cooling Sound Level: 54 dBA, Heating Operating Temperature: -13 to 64 deg F, Cooling Operating Temperature: 5 to 118 deg F, 54-11/32 in Overall Length, 37-13/32 in Overall Width, 13 in Overall Height
| Amperage Rating | : | 26.50 A |
| Compressor Type | : | 1-Stage Scroll |
| Cooling BTU Rating | : | 42000 Btu/hr |
| Cooling CFM Rating | : | 1412 cfm High, 1200 cfm Medium, 988 cfm Low |
| Cooling Operating Temperature | : | 5 to 118 deg F |
| Cooling Sound Level | : | 54 dBA |
| EER Rating | : | 12.5 |
| Frequency Rating | : | 60 Hz |
| HSPF Rating | : | 10.9 |
| Heating BTU Rating | : | 51400 Btu/hr at 17 deg F, 48000 Btu/hr at 5 deg F, 41820 Btu/hr at -4 deg F |
| Heating Operating Temperature | : | -13 to 64 deg F |
| Heating Sound Level | : | 56 dBA |
| Liquid Line Size | : | 3/8 in |
| Overall Height | : | 13 in |
| Overall Length | : | 54-11/32 in |
| Overall Width | : | 37-13/32 in |
| Phase | : | 1 ph |
| Power Rating | : | 3.36 kW Cooling, 4.5 kW Heating |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 19 |
| Suction Line Size | : | 5/8 in |
| Voltage Rating | : | 208/230 V |
