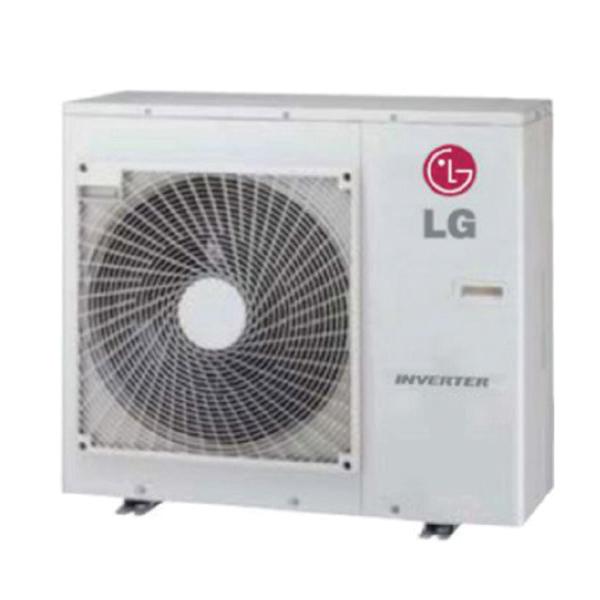

LG LSU363HLV3 High-Efficiency Heat Pump Outdoor Unit, 208 to 230 V, 30 A, 33000 Btu/hr Cooling, 1 ph Phase
- Manufacturer: LG Electronics
- Brand Name: LG
- Part#: LGLSU363HLV3
- MPN: LSU363HLV3
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
LG High-Efficiency Heat Pump Outdoor Unit, 208 to 230 V, 30 A, 3.3 kW Power, 60 Hz Frequency, 1 ph, Number of Fan Speeds: 6, Heating BTU Rating: 35200 Btu/hr, Cooling BTU Rating: 33000 Btu/hr, Heating CFM Rating: 2295 cfm, 10 EER, 18.5 SEER, 11 HSPF, Flared Connection, R-410A Refrigerant, 3/8 in Liquid Line, 5/8 in Suction Line, Direct Drive, Heating Sound Level: 58 dBA, Cooling Sound Level: 55 dBA, Wall Mounting, Heating Operating Temperature: -4 to 65 deg F, Cooling Operating Temperature: 14 to 118 deg F, 37-13/32 in Overall Length, 15-11/32 in Overall Width, 32-27/32 in Overall Height
| Amperage Rating | : | 30 A |
| Connection Type | : | Flared |
| Cooling BTU Rating | : | 33000 Btu/hr |
| Cooling Operating Temperature | : | 14 to 118 deg F |
| Cooling Sound Level | : | 55 dBA |
| Drive Type | : | Direct |
| EER Rating | : | 10 |
| Frequency Rating | : | 60 Hz |
| HSPF Rating | : | 11 |
| Heating BTU Rating | : | 35200 Btu/hr |
| Heating CFM Rating | : | 2295 cfm |
| Heating Operating Temperature | : | -4 to 65 deg F |
| Heating Sound Level | : | 58 dBA |
| Liquid Line Size | : | 3/8 in |
| Mounting Type | : | Wall |
| Number of Fan Speeds | : | 6 |
| Overall Height | : | 32-27/32 in |
| Overall Length | : | 37-13/32 in |
| Overall Width | : | 15-11/32 in |
| Phase | : | 1 ph |
| Power Rating | : | 3.3 kW |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 18.5 |
| Suction Line Size | : | 5/8 in |
| Voltage Rating | : | 208 to 230 V |
- 24 hr on/off timer
- Four way auto swing
- Auto changeover
- Auto restart
- Jet cool/jet heat
- Built-in low ambient standard, down to 14 deg F (cooling mode)
- Condensate sensor connection
- Inverter (variable speed compressor)
- Smart diagnosis
- Washable filter
- Self-cleaning indoor coil
- Built-in base pan heater
- Built-in Wi-Fi via smart ThinQ app
Specification Sheet
