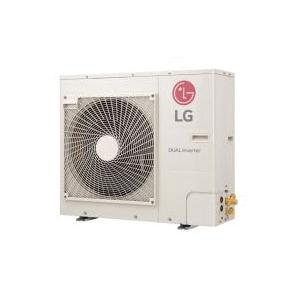

LG LSU181HSV5 5 1-Zone High Efficiency Heat Pump Outdoor Unit, 208/230 V, 18000 Btu/hr Cooling, 1 ph Phase
- Manufacturer: LG Electronics
- Brand Name: LG
- Part#: LGLSU181HSV5
- MPN: LSU181HSV5
- UPC: 195174023181
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
LG 5 1-Zone High Efficiency Heat Pump Outdoor Unit, 208/230 V, 1.43 kW Cooling, 1.73 kW Heating Power, 60 Hz Frequency, 1 ph, Heating BTU Rating: 22340 Btu/hr at 17 deg F, 19300 Btu/hr at 5 deg F, 16760 Btu/hr at -4 deg F, Cooling BTU Rating: 18000 Btu/hr, Heating CFM Rating: 2119 cfm, Cooling CFM Rating: 2119 cfm, 12.55 EER, 22 SEER, 9.5 HSPF, Twin Rotary Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 5/8 in Suction Line, Direct Drive, Heating Sound Level: 55 dBA, Cooling Sound Level: 55 dBA, Heating Operating Temperature: -4 to 65 deg F, Cooling Operating Temperature: 14 to 118 deg F, 13 in Overall Length, 37-13/32 in Overall Width, 32-3/4 in Overall Height
| Compressor Type | : | Twin Rotary |
| Cooling BTU Rating | : | 18000 Btu/hr |
| Cooling CFM Rating | : | 2119 cfm |
| Cooling Operating Temperature | : | 14 to 118 deg F |
| Cooling Sound Level | : | 55 dBA |
| Drive Type | : | Direct |
| EER Rating | : | 12.55 |
| Frequency Rating | : | 60 Hz |
| HSPF Rating | : | 9.5 |
| Heating BTU Rating | : | 22340 Btu/hr at 17 deg F, 19300 Btu/hr at 5 deg F, 16760 Btu/hr at -4 deg F |
| Heating CFM Rating | : | 2119 cfm |
| Heating Operating Temperature | : | -4 to 65 deg F |
| Heating Sound Level | : | 55 dBA |
| Liquid Line Size | : | 3/8 in |
| Overall Height | : | 32-3/4 in |
| Overall Length | : | 13 in |
| Overall Width | : | 37-13/32 in |
| Phase | : | 1 ph |
| Power Rating | : | 1.43 kW Cooling, 1.73 kW Heating |
| Refrigerant Type | : | R-410A |
| SEER Rating | : | 22 |
| Suction Line Size | : | 5/8 in |
| Voltage Rating | : | 208/230 V |
SB_SZ_High_Efficiency_LS181HSV5-2.pdf
