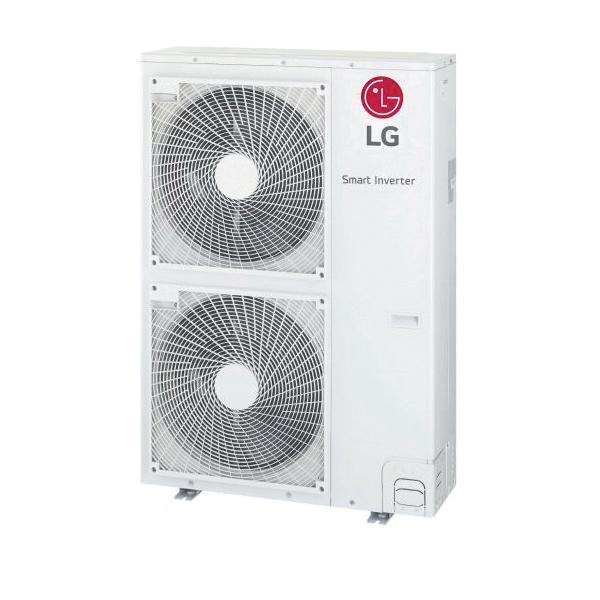

LG Multi F MAX with LGRED LMU360HHV Heat Pump Outdoor Unit With LGRED LMU360HHV Heat Pump Outdoor Unit, 208-230 V, 45 A

  • Manufacturer: LG Electronics
  • Brand Name: LG
  • Part#: LGLMU360HHV
  • MPN: LMU360HHV
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

LG Multi F MAX with LGRED Heat Pump Outdoor Unit With LGRED LMU360HHV Heat Pump Outdoor Unit, 208-230 V, 45 A, 60 Hz Frequency, 1 ph, Heating BTU Rating: 50200 Btu/hr, Cooling BTU Rating: 46733 Btu/hr, Twin Rotary Compressor, R-410A Refrigerant, Brushless Digitally Controlled, Direct Drive, Heating Sound Level: 57 dBA, Cooling Sound Level: 54 dBA, Heating Operating Temperature: -13 to 75 deg F, Cooling Operating Temperature: 14 to 118 deg F, 37-13/32 in Overall Length, 54-11/32 in Overall Width, 15-3/4 in Overall Height

Amperage Rating      :      45 A
Compressor Type      :      Twin Rotary
Cooling BTU Rating      :      46733 Btu/hr
Cooling Operating Temperature      :      14 to 118 deg F
Cooling Sound Level      :      54 dBA
Drive Type      :      Brushless Digitally Controlled, Direct
Frequency Rating      :      60 Hz
Heating BTU Rating      :      50200 Btu/hr
Heating Operating Temperature      :      -13 to 75 deg F
Heating Sound Level      :      57 dBA
Overall Height      :      15-3/4 in
Overall Length      :      37-13/32 in
Overall Width      :      54-11/32 in
Phase      :      1 ph
Refrigerant Type      :      R-410A
Voltage Rating      :      208-230 V
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/LG_LMU360HHV_Specification_Sheet.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/LG_LMU360HHV_Specification_Sheet.pdf
