LG KUSAP241A LGKUSAP241A
  1. pin-int

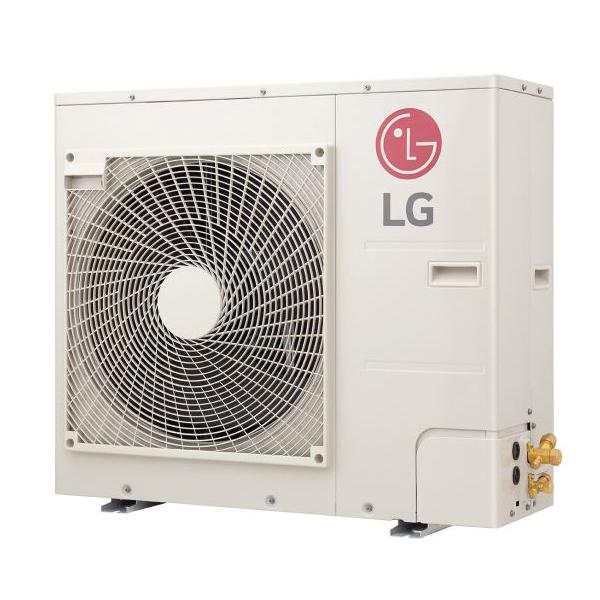

LG KUSAP241A Outdoor Unit, 208-230 V, 19 A, 22000 Btu/hr Cooling, 1 ph, Metal, R-32 Refrigerant

  • Manufacturer: LG Electronics
  • Brand Name: LG
  • Part#: LGKUSAP241A
  • MPN: KUSAP241A
  • UPC: 195174097267
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

LG Outdoor Unit, 208-230 V, 19 A, 1.69 kW Cooling, 1.92 kW Heating, 60 Hz, 1 ph Phase, 6 Fan Speeds, 24000 Btu/hr Heating, 22000 Btu/hr Cooling, 2119 cfm Heating CFM Rating, 2119 cfm Cooling CFM Rating, 13 EER Rating, 22 SEER, 9.7 HSPF, Inverter Driven Twin Rotary Compressor, R-32 Refrigerant, 3/8 in Liquid Line, 5/8 in Suction Line, 30 A Fuse Rating, 17 FPI Coil, Direct Drive, 56 dBA Heating Sound Level, 55 dBA Cooling Sound Level, Wall Mounting, Metal, RAL 9001 Munsell 9.54Y 8.34/1.31, -4 to 65 deg F Heating Operating Temperature, 14 to 118 deg F Cooling Operating Temperature, 37-13/32 in Overall Length, 13 in Overall Width, 32-3/4 in Overall Height, Additional Information: Single-Zone

Additional Information      :      Single-Zone
Amperage Rating      :      19 A
Coil Rating      :      17 FPI
Color      :      RAL 9001 Munsell 9.54Y 8.34/1.31
Compressor Type      :      Inverter Driven Twin Rotary
Cooling BTU Rating      :      22000 Btu/hr
Cooling CFM Rating      :      2119 cfm
Cooling Operating Temperature      :      14 to 118 deg F
Cooling Sound Level      :      55 dBA
Drive Type      :      Direct
EER Rating      :      13
Frequency Rating      :      60 Hz
Fuse Rating      :      30 A
HSPF Rating      :      9.7
Heating BTU Rating      :      24000 Btu/hr
Heating CFM Rating      :      2119 cfm
Heating Operating Temperature      :      -4 to 65 deg F
Heating Sound Level      :      56 dBA
Liquid Line Size      :      3/8 in
Material      :      Metal
Mounting Type      :      Wall
Number of Fan Speeds      :      6
Overall Height      :      32-3/4 in
Overall Length      :      37-13/32 in
Overall Width      :      13 in
Phase      :      1 ph
Power Rating      :      1.69 kW Cooling, 1.92 kW Heating
Refrigerant Type      :      R-32
SEER Rating      :      22
Suction Line Size      :      5/8 in
Voltage Rating      :      208-230 V
  • 24-Hour On / Off Timer
  • 4-Way Auto Swing
  • Auto Restart / Auto Changeover
  • Jet Cool / Jet Heat
  • Inverter (Variable Speed Compressor)
  • Smart Diagnosis
  • Washable Filter
  • Self-Cleaning Indoor Coil
  • Built-in Base Pan Heater
  • Built-in Wi-Fi via Smart ThinQ app
  • Low ambient cooling down to 14 deg F (0 deg F with Wind Baffle Kit)
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/LG_KUSAP241A_Owners_User_Manual.pdf
  • pdfSubmittal https://assets.unilogcorp.com/267/ITEM/DOC/LG_KUSAP241A_Submittal.pdf
