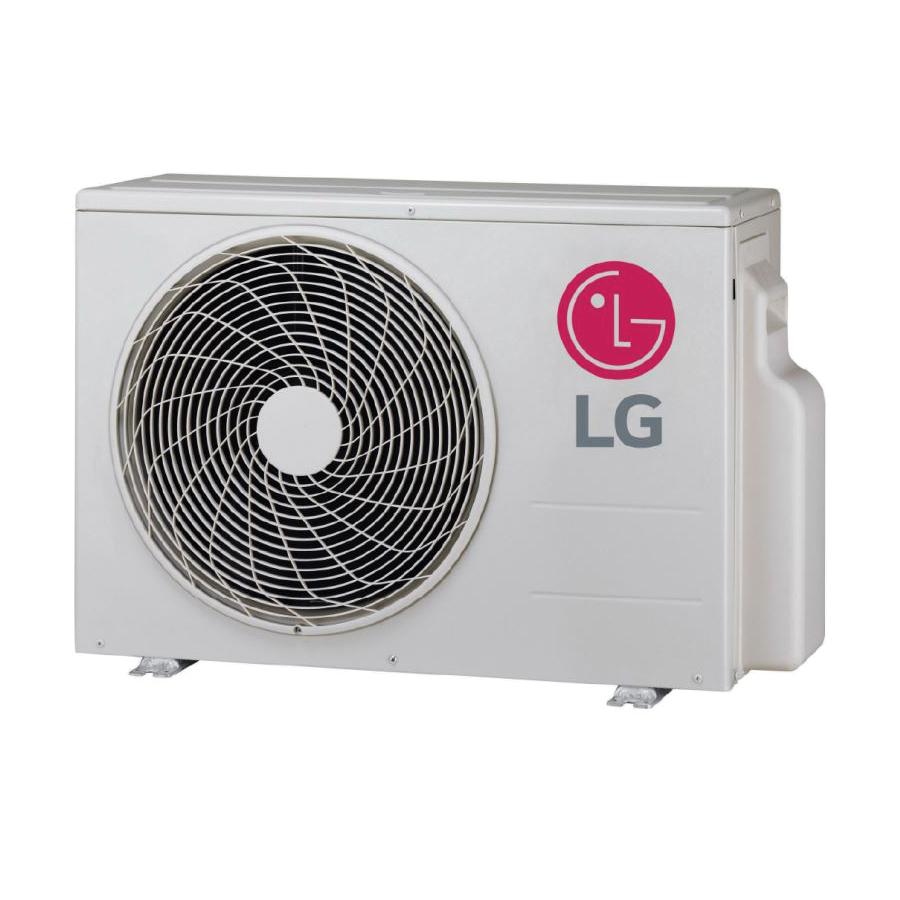

LG Art Cool™ Mirror Series KUSAB121A Outdoor Unit, 208-230 V, 12 A, 12000 Btu/hr Cooling, 1 ph, Metal
- Manufacturer: LG Electronics
- Brand Name: LG
- Part#: LGKUSAB121A
- MPN: KUSAB121A
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
LG Outdoor Unit, Art Cool™ Mirror Series, 208-230 V, 12 A, 0.93 kW Cooling, 1.04 kW Heating, 60 Hz, 1 ph Phase, 6 Fan Speeds, 13600 Btu/hr Heating, 12000 Btu/hr Cooling, 459 cfm Heating CFM Rating, 459 cfm Cooling CFM Rating, 12.8 EER Rating, 22.5 SEER, 10.5 HSPF, Inverter Driven Twin Rotary Compressor, R-32 Refrigerant, 1/4 in Liquid Line, 3/8 in Suction Line, 15 A Fuse Rating, 18 FPI Coil, Direct Drive, 41 dBA Heating Sound Level, 41 dBA Cooling Sound Level, Wall Mounting, Metal, RAL 9001 Munsell 9.54Y 8.34/1.31, -4 to 65 deg F Heating Operating Temperature, 14 to 118 deg F Cooling Operating Temperature, 30-5/16 in Overall Length, 11-11/32 in Overall Width, 21-15/32 in Overall Height, Additional Information: Single-Zone
| Additional Information | : | Single-Zone |
| Amperage Rating | : | 12 A |
| Coil Rating | : | 18 FPI |
| Color | : | RAL 9001 Munsell 9.54Y 8.34/1.31 |
| Compressor Type | : | Inverter Driven Twin Rotary |
| Cooling BTU Rating | : | 12000 Btu/hr |
| Cooling CFM Rating | : | 459 cfm |
| Cooling Operating Temperature | : | 14 to 118 deg F |
| Cooling Sound Level | : | 41 dBA |
| Drive Type | : | Direct |
| EER Rating | : | 12.8 |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 15 A |
| HSPF Rating | : | 10.5 |
| Heating BTU Rating | : | 13600 Btu/hr |
| Heating CFM Rating | : | 459 cfm |
| Heating Operating Temperature | : | -4 to 65 deg F |
| Heating Sound Level | : | 41 dBA |
| Liquid Line Size | : | 1/4 in |
| Material | : | Metal |
| Mounting Type | : | Wall |
| Number of Fan Speeds | : | 6 |
| Overall Height | : | 21-15/32 in |
| Overall Length | : | 30-5/16 in |
| Overall Width | : | 11-11/32 in |
| Phase | : | 1 ph |
| Power Rating | : | 0.93 kW Cooling, 1.04 kW Heating |
| Refrigerant Type | : | R-32 |
| SEER Rating | : | 22.5 |
| Series | : | Art Cool™ Mirror Series |
| Suction Line Size | : | 3/8 in |
| Voltage Rating | : | 208-230 V |
- Inverter (Variable Speed Compressor)
- 24-Hour on/off timer
- 4-Way auto swing
- Sleep Mode
- Jet Cool/Jet Heat
- Auto Restart
- Auto Changeover
- Built-in Drain pan heater
- Built-in Wi-Fi via ThinQ app
- Smart Diagnosis
- 3M Micro Filter
- IDU compatible with Multi F ODUs
- Low ambient cooling down to 14 deg F (0 deg F with Wind Baffle Kit)
- Self-cleaning indoor coil
- IDU R32 leak detection sensor
