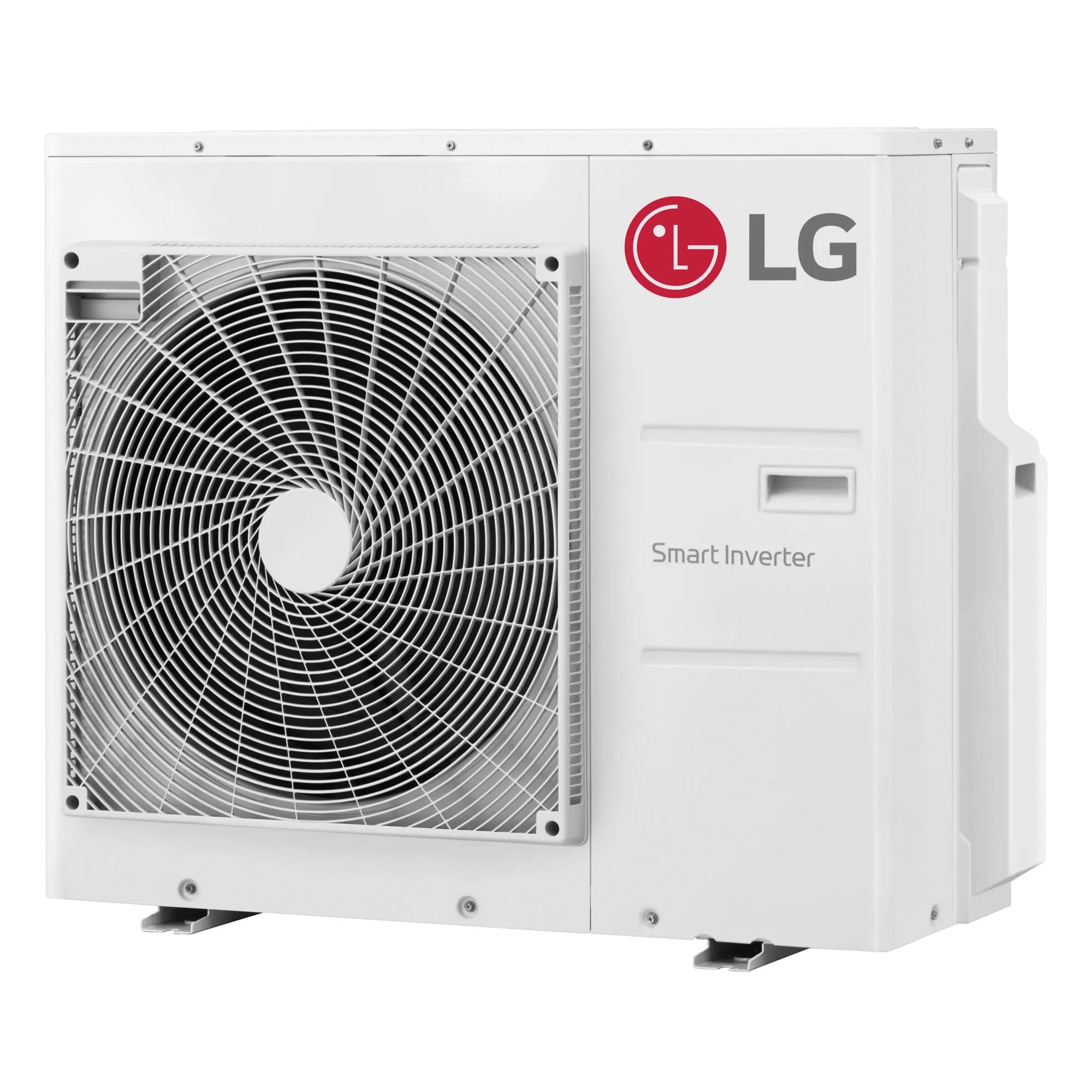

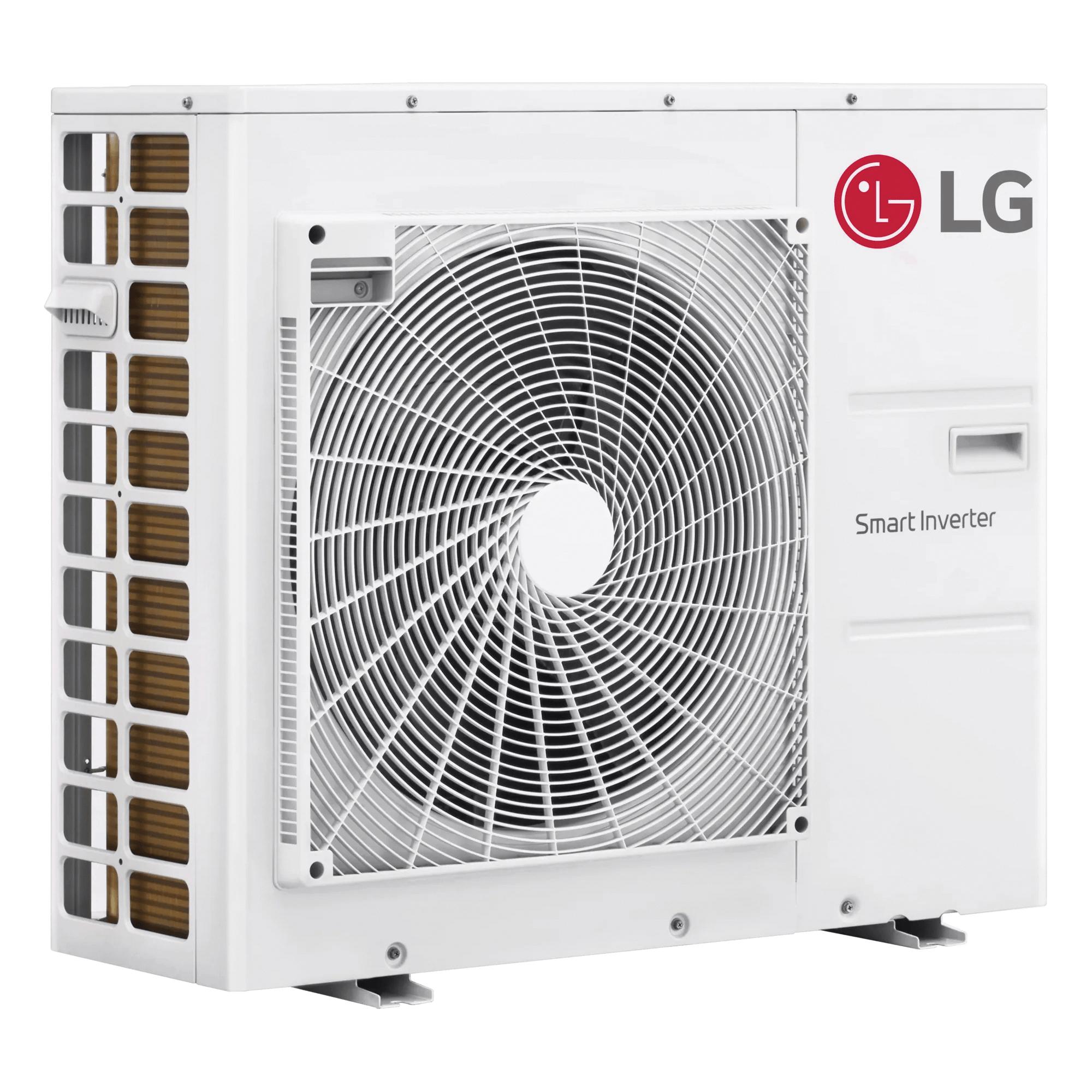

LG Multi F Series KUMXB181A Heat Pump Outdoor Unit, 208-230 V, 16.1 A, 18000 Btu/hr Cooling, 1 ph, Steel
- Manufacturer: LG Electronics
- Brand Name: LG
- Part#: LGKUMXB181A
- MPN: KUMXB181A
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
LG Heat Pump Outdoor Unit, Multi F Series, 208-230 V, 16.1 A, 1.333 kW Cooling, 1.791 kW Heating, 60 Hz, 1 ph Phase, 22000 Btu/hr Heating, 18000 Btu/hr Cooling, Inverter Driven Twin Rotary Compressor, R-32 Refrigerant, 1/4 in Liquid Line, 3/8 in Suction Line, 20 A Fuse Rating, 14 FPI Coil, Direct Drive, Tonnage: 1.5 ton, 54 dBA Heating Sound Level, 49 dBA Cooling Sound Level, Concealed Mounting, Steel, Finish: Galvanized, RAL 7044 Munsell 2.5Y 7.5/1, -4 to 64 deg F Heating Operating Temperature, 14 to 118 deg F Cooling Operating Temperature, 34-1/4 in Overall Length, 13 in Overall Width, 25-19/32 in Overall Height, Additional Information: Multi-Zone, 1766 cfm Maximum Air Flow
| Additional Information | : | Multi-Zone, 1766 cfm Maximum Air Flow |
| Amperage Rating | : | 16.1 A |
| Coil Rating | : | 14 FPI |
| Color | : | RAL 7044 Munsell 2.5Y 7.5/1 |
| Compressor Type | : | Inverter Driven Twin Rotary |
| Cooling BTU Rating | : | 18000 Btu/hr |
| Cooling Operating Temperature | : | 14 to 118 deg F |
| Cooling Sound Level | : | 49 dBA |
| Drive Type | : | Direct |
| Finish | : | Galvanized |
| Frequency Rating | : | 60 Hz |
| Fuse Rating | : | 20 A |
| Heating BTU Rating | : | 22000 Btu/hr |
| Heating Operating Temperature | : | -4 to 64 deg F |
| Heating Sound Level | : | 54 dBA |
| Liquid Line Size | : | 1/4 in |
| Material | : | Steel |
| Mounting Type | : | Concealed |
| Overall Height | : | 25-19/32 in |
| Overall Length | : | 34-1/4 in |
| Overall Width | : | 13 in |
| Phase | : | 1 ph |
| Power Rating | : | 1.333 kW Cooling, 1.791 kW Heating |
| Refrigerant Type | : | R-32 |
| Series | : | Multi F Series |
| Suction Line Size | : | 3/8 in |
| Tonnage | : | 1.5 ton |
| Voltage Rating | : | 208-230 V |
- Auto operation / Auto restart
- Inverter (variable speed compressor)
- Integrated central control connection
- Defrost / Deicing
- Restart delay (three [3] minutes)
- Self diagnosis
- Soft start
- Low ambient cooling down to 14 deg F (-4 deg F with Wind Baffle Kit)
Owners/User Manual
