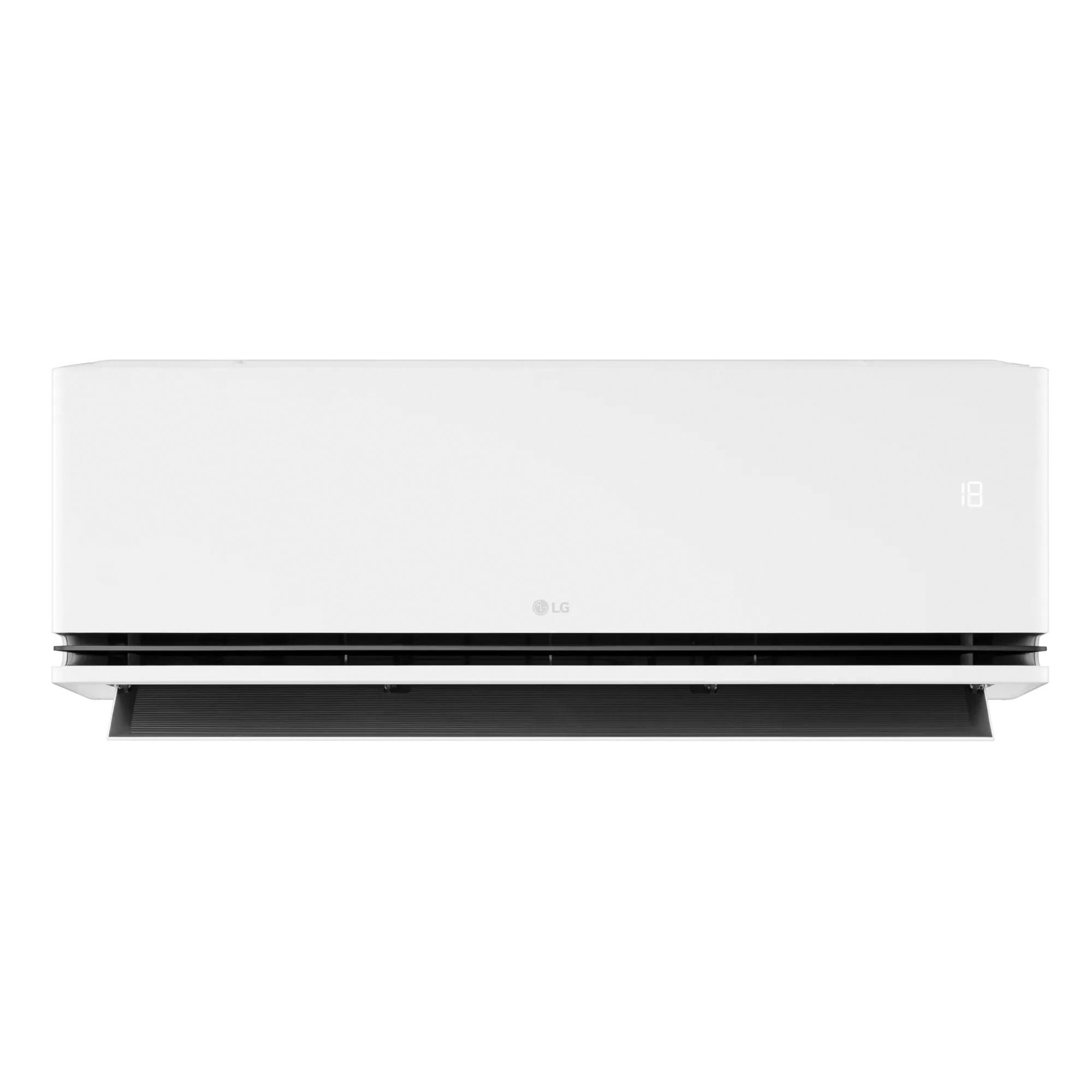

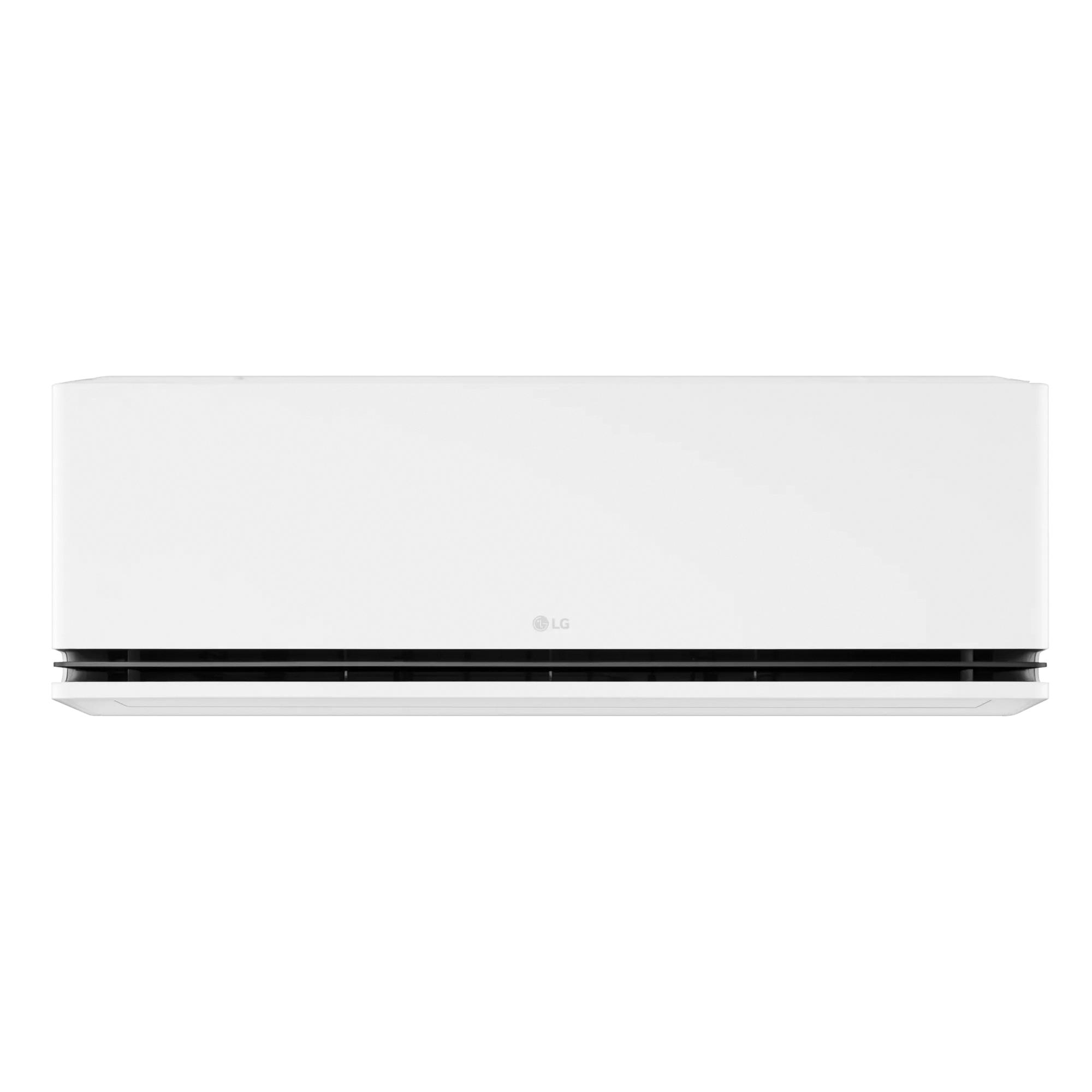

LG Art Cool™ Deluxe Series KNSAL091A Indoor Unit, 208-230 V, 15 A, 9000 Btu/hr Cooling, 11000 Btu/hr Heating BTU

  • Manufacturer: LG Electronics
  • Brand Name: LG
  • Part#: LGKNSAL091A
  • MPN: KNSAL091A
  • UPC: 195174085325
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

LG Indoor Unit, Art Cool™ Deluxe Series, 208-230 V, 15 A, 0.57 kW Cooling, 0.724 kW Heating, 60 Hz, 1 ph Phase, 6 Fan Speeds, 9000 Btu/hr Cooling, 11000 Btu/hr Heating, 494 cfm Cooling, 515 cfm Heating, 15.8 EER Rating, 27 SEER, 13.5 HSPF, 20 A Fuse Rating, 21 FPI Coil, Direct Drive, 42 dBA Sound Level, Wall Mounting, ABS/Polystyrene, RAL 9003 Munsell 7.5P 9/2, 53 to 75 deg F Cooling, 60 to 86 deg F Heating, 35-1/4 in Overall Length, 9-1/4 in Overall Width, 12-3/32 in Overall Height, Additional Information: Single-Zone, R-32 Refrigerant, 1/4 in Liquid Line, 3/8 in Vapor Line

Additional Information      :      Single-Zone, R-32 Refrigerant, 1/4 in Liquid Line, 3/8 in Vapor Line
Amperage Rating      :      15 A
BTU Rating      :      9000 Btu/hr Cooling, 11000 Btu/hr Heating
CFM Rating      :      494 cfm Cooling, 515 cfm Heating
Coil Rating      :      21 FPI
Color      :      RAL 9003 Munsell 7.5P 9/2
Drive Type      :      Direct
EER Rating      :      15.8
Frequency Rating      :      60 Hz
Fuse Rating      :      20 A
HSPF Rating      :      13.5
Material      :      ABS/Polystyrene
Mounting Type      :      Wall
Number of Fan Speeds      :      6
Overall Height      :      12-3/32 in
Overall Length      :      35-1/4 in
Overall Width      :      9-1/4 in
Phase      :      1 ph
Power Rating      :      0.57 kW Cooling, 0.724 kW Heating
SEER Rating      :      27
Series      :      Art Cool™ Deluxe Series
Sound Level      :      42 dBA
Temperature Rating      :      53 to 75 deg F Cooling, 60 to 86 deg F Heating
Voltage Rating      :      208-230 V
  • Dual Vane / 4-Way Auto Swing
  • Cooling Only / Heating Only
  • Auto Restart / Auto Changeover
  • Humidity Sensor / Control
  • Jet Cool / Jet Heat
  • Inverter (Variable Speed Compressor)
  • Human Detection
  • Smart Diagnosis
  • Built-in Base Pan Heater
  • Built-in Wi-Fi via Smart ThinQ app
  • Low ambient cooling down to 14 deg F (0 deg F with Wind Baffle Kit)
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/LG_KUSAL091A_Owners_User_Manual.pdf
  • pdfSubmittal https://assets.unilogcorp.com/267/ITEM/DOC/LG_KUSAL091A_Submittal.pdf
