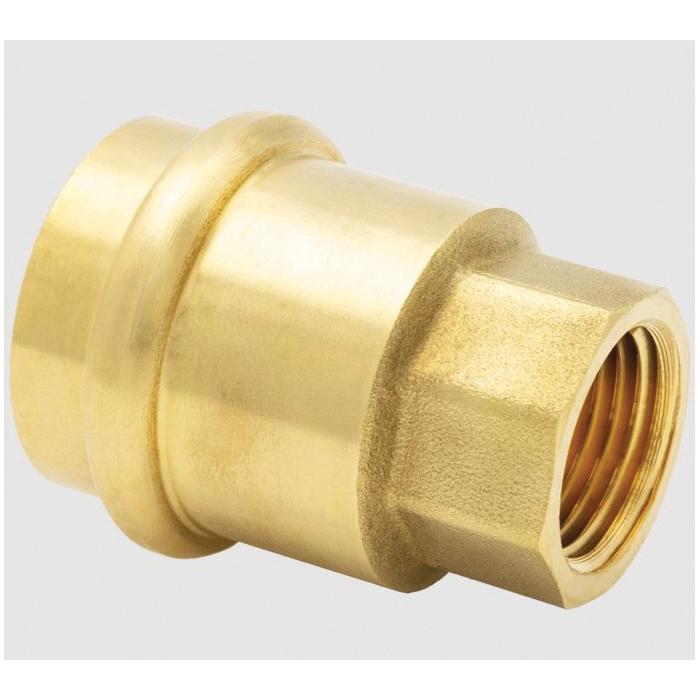

Legend Valve LegendPress® 450-731P Reducing Adapter, 3/4 in Press x 1/2 in FNPT, Brass
- Manufacturer: Legend Valve
- Brand Name: Legend Valve
- Part#: LEG3412FNPTADA
- MPN: 450-731P
- UPC: 662545122465
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
Press-type end connections eliminate the need for soldering, reducing labor and material costs and eliminating the fire hazard associated with the process. Press to connect connections are designed for installation onto ASTM B88 types K, L and M hard drawn copper tubing. Coiled (annealed) soft copper tubing is not recommended but can be used if the ends are made round. Fittings in nominal sizes 1/2 to 2 in feature molded recess O-rings which, when un-pressed, create leak paths at multiple points during the pressure test to identify an un-pressed joint quickly.
Legend Valve LegendPress® Reducing Adapter, Adapter Fitting, 3/4 in Connection Size 1, Press Connection Type 1, 1/2 in Connection Size 2, FNPT Connection Type 2, Press|FNPT Connection Type, Brass, Lead-Free Brass Material Construction, For Use With: ASTM B88 Type K, L and M Hard-Drawn Copper Tubing, Dimension Standards: ANSI/ASME B1.20.1, 200 psi, 0 to 250 deg F
| Connection Size 1 | : | 3/4 in |
| Connection Size 2 | : | 1/2 in |
| Connection Type 1 | : | Press |
| Connection Type 2 | : | FNPT |
| Connection Type | : | Press|FNPT |
| Dimension Standards | : | ANSI/ASME B1.20.1 |
| Fitting Type | : | Adapter |
| For Use With | : | ASTM B88 Type K, L and M Hard-Drawn Copper Tubing |
| Material Construction | : | Lead-Free Brass |
| Material | : | Brass |
| Pressure Rating | : | 200 psi |
| Temperature Rating | : | 0 to 250 deg F |
- Press-type end connections eliminate the need for soldering, reducing labor and material costs and eliminating the fire hazard associated with the process
- Press to connect connections are designed for installation onto ASTM B88 types K, L and M hard drawn copper tubing, coiled (annealed) soft copper tubing is not recommended but can be used if the ends are made round
- Fittings in nominal sizes 1/2 to 2 in feature molded recess O-rings which, when un-pressed, create leak paths at multiple points during the pressure test to identify an un-pressed joint quickly
Specification Sheet
