Legend Valve 450-109P LEG3412RED90
  1. pin-int

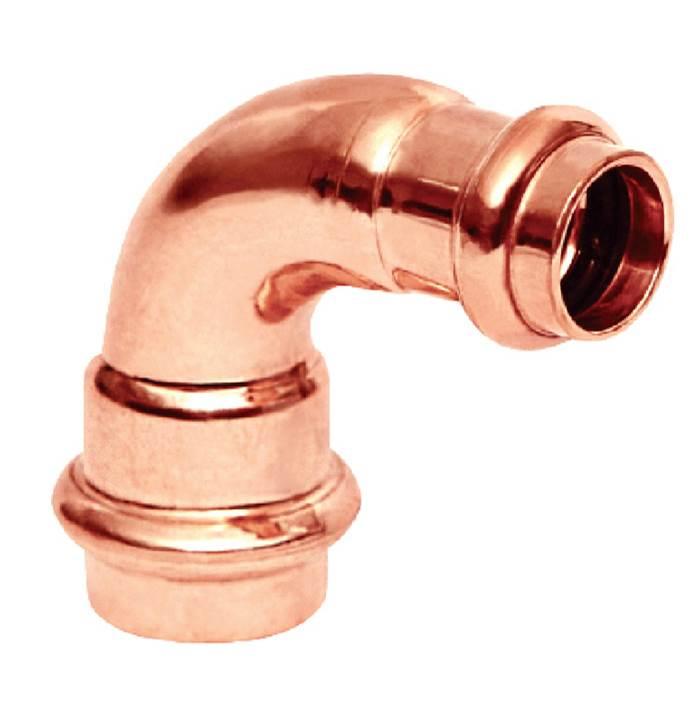

Legend Valve LegendPress® 450-109P 90 deg Reducing Elbow, 3/4 in Press x 1/2 in Press, Copper

  • Manufacturer: Legend Valve
  • Brand Name: Legend Valve
  • Part#: LEG3412RED90
  • MPN: 450-109P
  • UPC: 662545120522
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

Legend Valve 90 deg Reducing Elbow, 90 deg Elbow Fitting, 3/4 in Connection Size 1, Connection Type 1: Press, 1/2 in Connection Size 2, Connection Type 2: Press, Press|Press Connection, Copper, Material Construction: Wrot Copper, 15 psi, 200 psi, 0 to 250 deg F

Connection Size 1      :      3/4 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Press
Connection Type 2      :      Press
Connection Type      :      Press|Press
Fitting Type      :      90 deg Elbow
Material Construction      :      Wrot Copper
Material      :      Copper
Pressure Rating      :      15 psi, 200 psi
Temperature Rating      :      0 to 250 deg F
  • Press-type end connections eliminate the need for soldering, reducing labor and material costs and eliminating the fire hazard associated with the process.
  • Press-to-connect connections are designed for installation onto ASTM B88 types K, L and M hard drawn copper tubing, coiled (annealed) soft copper tubing is not recommended but can be used if the ends are made round
  • Fittings in nominal sizes 1/2 to 4 in feature molded recess O-rings which, when un-pressed, create leak paths at multiple points during the pressure test, to identify an un-pressed joint quickly
