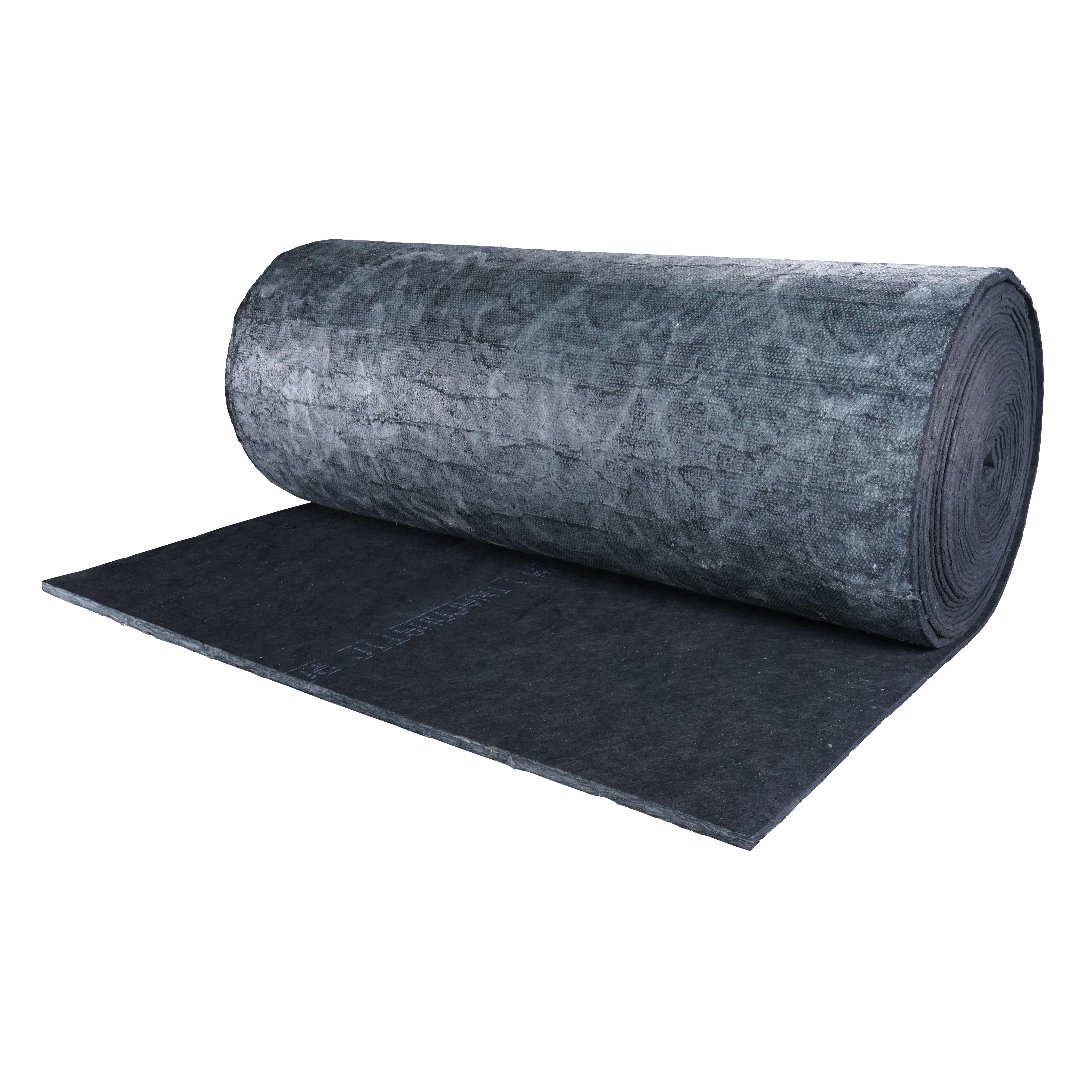

JM Linacoustic® RC-IG Series 112561450LINRCIG Duct Liner With Reinforced Coating and Pre-Applied Adhesive, 56-1/4 in W

  • Manufacturer: Johns Manville
  • Brand Name: JM
  • Part#: JOH112561450LINRCIG
  • MPN: 112561450LINRCIG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at All Branches

Linacoustic® RC-IG insulation is a premium, flexible, fiberglass duct liner made from strong glass fibers bonded with a thermosetting resin. The airstream surface is protected with JM exclusive reinforced coating system, which combines our state of the art Permacote® acrylic coating with a flexible glass mat reinforcement to provide a smooth air stream surface. On the opposite side of the airstream surface, Linacoustic® RC-IG contains InsulGrip® a non-toxic, water-reactivated adhesive layer.

JM Linacoustic® Duct Liner, Series: RC-IG Series, 1-1/2 in Thickness, 56-1/4 in Width, 50 ft Length, R-Value: R6.3, 6000 fpm Air, 250 deg F, Fiberglass, Additional Information: 0.85 NRC

Additional Information      :      0.85 NRC
Air Velocity      :      6000 fpm
Length      :      50 ft
Material      :      Fiberglass
R-Value      :      R6.3
Series      :      RC-IG Series
Temperature Rating      :      250 deg F
Thickness      :      1-1/2 in
Width      :      56-1/4 in
  • Using Linacoustic® RC-IG eliminates the need for a paint-on adhesive and any subsequent cleanup the adhesive requires
  • The dry, pre-applied, InsulGrip® adhesive layer on the insulation is activated by lightly wetting the adhesive side of the insulation before setting it in place on the duct panel
  • The Linacoustic® RC-IG adheres securely to the duct panel within seconds
  • Linacoustic® RC-IG duct liner improves indoor environmental quality by helping to control both temperature and sound
  • The tough acrylic polymer Permacote® coating helps guard against the incursion of dust or dirt into the substrate, minimizing the potential for biological growth
  • Permacote® coating is formulated with an immobilized EPA registered protective agent to protect the coating from potential growth of fungi and bacteria
  • Linacoustic® RC-IG duct liner meets all requirements for fungi and bacterial resistance
  • Tests were conducted in accordance with ASTM C1338 and ASTM G21 (fungi testing)
  • If HVAC system cleaning is required, the reinforced coating airstream surface may be cleaned with industry recognized dry methods
  • See the NAIMA cleaning fibrous glass insulated air duct systems
  • The reinforced coating surface provides superior resistance to penetration of incidental water into the fiber glass wool core
