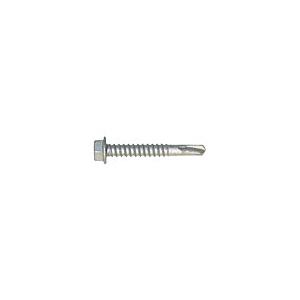

ITW Buildex 1196200 Self-Drilling Screw, #8-18 Thread, 1/2 in OAL, Hex Washer Head, 1/4 in Drive, Unslotted Hex Drive
- Manufacturer: ITW Buildex and Illinois Tool Works, Inc
- Brand Name: ITW Buildex
- Part#: BUI812
- MPN: 1196200
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at All Branches
-
Price:
ITW Buildex Self-Drilling Screw, #8-18 Thread, Standard Thread, 1/2 in Overall Length, 1/4 in Head, Hex Washer Head, 1/4 in Drive, Unslotted Hex Drive, 0.036 to 0.1 in Drill, #2 Point, Teks® 2 Point, Carbon Steel, Electro-Plated Zinc
| Drill Size | : | 0.036 to 0.1 in |
| Drive Size | : | 1/4 in |
| Drive Type | : | Unslotted Hex |
| Finish | : | Electro-Plated Zinc |
| Head Size | : | 1/4 in |
| Head Type | : | Hex Washer |
| Material | : | Carbon Steel |
| Overall Length | : | 1/2 in |
| Point Size | : | #2 |
| Point Type | : | Teks® 2 |
| Thread Size | : | #8-18 |
| Thread Type | : | Standard |

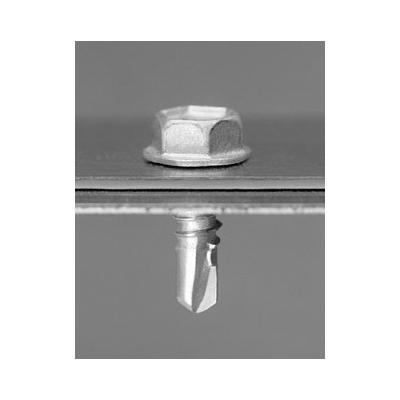

- Sharp convex drill point has precise cutting edges to improve drill performance with less effort
- Non-walking point provides fast material engagement

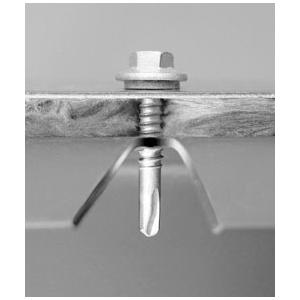

- Unique point to thread design extrudes the metal preventing strip out
- Point to thread design maximizes pull-out performance and minimizes backout
- Four head-styles available to handle various applications
- Climaseal® finish provides excellent corrosion resistance and lower tapping torque
